CJCB88HF1Y0 , LPJ0025GENL RJ45 Modular Jack 10/100Base-Tx TS8P8C-PCB-TRAF

CJCB88HF1Y0 , LPJ0025GENL RJ45 Modular Jack 10/100Base-Tx TS8P8C-PCB-TRAF
CJCB88HF1Y0 , LPJ0025GENL RJ45 Modular Jack 10/100Base-Tx TS8P8C-PCB-TRAF CJCB88HF1Y0 , LPJ0025GENL RJ45 Modular Jack 10/100Base-Tx TS8P8C-PCB-TRAF

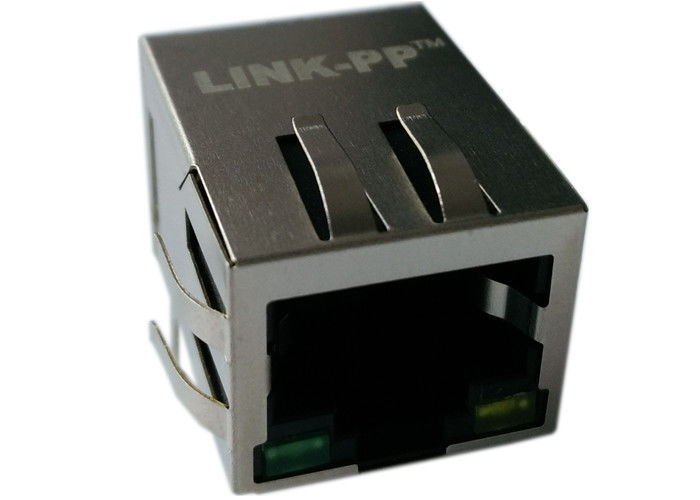

Large Image :  CJCB88HF1Y0 , LPJ0025GENL RJ45 Modular Jack 10/100Base-Tx TS8P8C-PCB-TRAF

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: CJCB88HF1Y0
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specifications: CJCB88HF1Y0 P/N: LPJ0025GENL
Pins: 8P8C Contact Direction: Right Angle
Mounting: PCB Samples: Free
High Light:

modular jacks rj45

,

industrial rj45 connector

CJCB88HF1Y0 , LPJ0025GENL RJ45 Modular Jack 10/100Base-Tx TS8P8C-PCB-TRAF

  1. P C Mainboard, SDH, PDH, IP Phone, xDSL modem
  2. Fast Ethernet LPJ0025GENL Compatible to CJCB88HF1Y0
  3. Printed Circuit Board networking and communication equipments
  4. Minimum 1500Vrms
  5. TS8P8C-PCB-TRAF
  6. PCB mount Jack 8p RJ45, 10/100Base-Transformer Type Female
Description:

Single Port RJ45 Jack with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJ0025GENL
Other Part Number CJCB88HF1Y0
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 5
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 13.40
Package Length (mm) 21.30
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600staff,
100% test
Flexible delivery time
CJCB88HF1Y0
