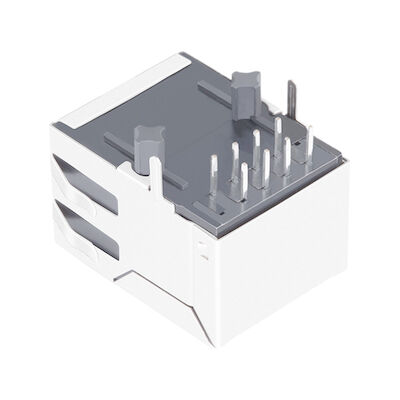

10/100Base-T 8P8C RJ45 Modular Jack IEEE 802.3 Magjack Connector 13F-61ND2NL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 13F-61ND2NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

modular jacks rj45

,

industrial rj45 connector

PN:
13F-61ND2NL
Made In China:
SM-LPJ0012CNL
Latch:
Down
PIN Type:
THT Solder
Sample:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
PN:
13F-61ND2NL
Made In China:
SM-LPJ0012CNL
Latch:
Down
PIN Type:
THT Solder
Sample:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
10/100Base-T 8P8C RJ45 Modular Jack IEEE 802.3 Magjack Connector 13F-61ND2NL
10/100Base-T 8P8C RJ45 Modular Jack IEEE 802.3 Magjack Connector 13F-61ND2NL


Quick Details

  • 1.10/100/1000M POE/POE
  • 2.1X1 Tab-up
  • 3.POE/POE RJ45 modular jack
  • 4.33.02 length RJ45 Magjack

1 x 1 Port RJ45 Modular Jack , 100Base RJ 45 Modular Connector


Description:

1X1 Tab-up 10/100/1000M POE/POE+ RJ45 Magjack with/without leds, length 33.02mm, meeting IEEE 802.3af/at
Single Port RJ45 Connector Magjack with 10/100 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJ0012CNL
YDS Part Number 13F-61ND2NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 13.40
Package Length (mm) 21.30
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
