Name: LPJ0014BBNL RJ45 Modular Jack socket w. Transfomer 10/100 Mbit
Brand: LINK-PP
SKU: LPJ0014BBNL
Price: 0.05 USD
Availability: InStock
Rating: 4.7 (161 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ0014BBNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    rj-45 ethernet jack, industrial rj45 connector


Specifications:	LPJ0014BBNL	P/N:	LPJ0014BBNL
Ethernet:	1x 10/100Mbps	Samples:	Available
Cores Per Port:	4	File:	PDF/3D/ISG/Stp/Step/Datasheet

Specifications:	LPJ0014BBNL
P/N:	LPJ0014BBNL
Ethernet:	1x 10/100Mbps
Samples:	Available
Cores Per Port:	4
File:	PDF/3D/ISG/Stp/Step/Datasheet

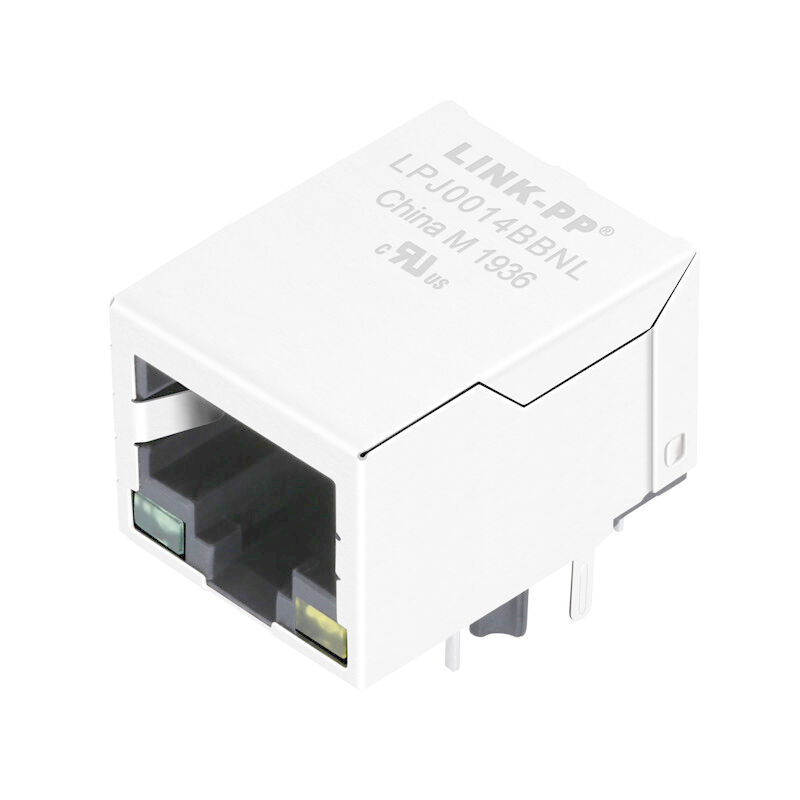

LPJ0014BBNL RJ45 Modular Jack socket w. Transfomer 10/100 Mbit

LPJ0014BBNL RJ45 Modular Jack socket w. Transfomer 10/100 Mbit

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = SMT

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number	LPJ0014BBNL
Application-Lan	ETHERNET(NoN PoE)
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
Diodes	NO DIODES
LED Option	GREEN/YELLOW
Latch	TAB DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (mm)	13.50
Package Length (mm)	21.30
Package Width (mm)	16.00
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITHOUT
Speed	10/100 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
