| PN: | 13F-62GYD4PNW2NL | Made In China: | SM-LPJ0025HHNL |
|---|---|---|---|
| LED Option: | GREEN/YELLOW | Number Of Ports: | 1x1 |
| Sample: | Free | File: | PDF/3D/ISG/Stp/Step/Datasheet |
| Highlight: | rj-45 ethernet jack,modular jacks rj45 |
||

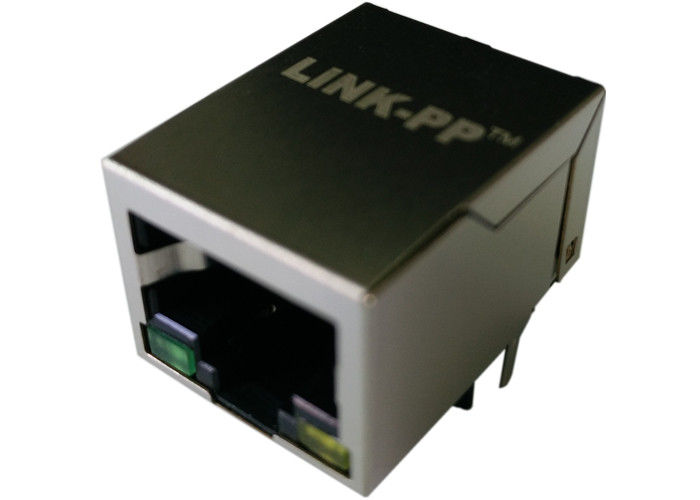

| Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ0025HHNL |
| YDS Part Number | 13F-62GYD4PNW2NL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 13.50 |
| Package Length (mm) | 21.30 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
