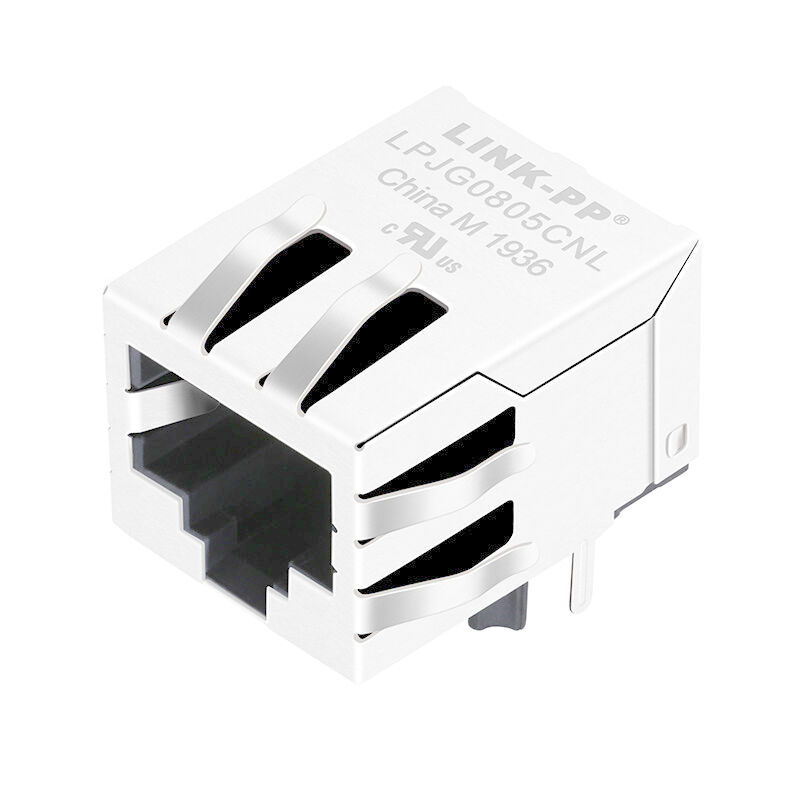

LPJG0805CNL Magnetic RJ45 Jack Cross XRJF-01J-0-H68-010-NIJ , Right Angle Jack
1. 10/100M # XRJF-01J-0-H68-010-NIJ
2. 1X1 Tab-down , LPJG0805CNL
3. Package: Tray
4. 21.3mm length RJ45 Magjack
| Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS |
| LINK-PP Part Number |
LPJG0805CNL |
| X Multiple Part Number |
XRJF-01J-0-H68-010-NIJ |
| Application-Lan |
ETHERNET(NoN PoE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITHOUT LEDS |
| Latch |
TAB DOWN |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Package Height (Inches) |
0.528 |
| Package Height (mm) |
13.40 |
| Package Length (Inches) |
0.839 |
| Package Length (mm) |
21.30 |
| Package Width (Inches) |
0.626 |
| Package Width (mm) |
15.90 |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70℃ |
| Turns Ratio RX |
1CT:1CT |
| Turns Ratio TX |
1CT:1CT |
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
