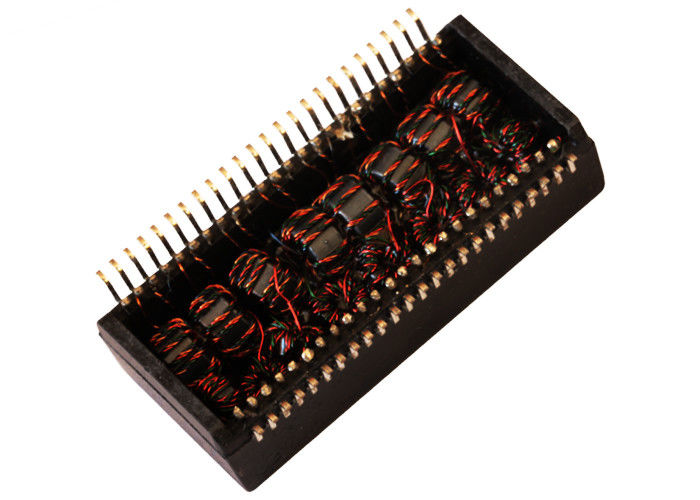

GS5014 / GS5014 LF Dual Ports Lan Transformer , Gigabit Ethernet Module LP5014NL

China GS5014 / GS5014 LF Dual Ports Lan Transformer , Gigabit Ethernet Module LP5014NL supplier

Large Image :  GS5014 / GS5014 LF Dual Ports Lan Transformer , Gigabit Ethernet Module LP5014NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: GS5014 / GS5014 LF

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: GS5014 / GS5014 LF Speed: Gigabit
Number Of Ports: Dual Application: Lan Ethernet(NON PoE)
Package: SMD PIN Number: 48
Temperature: - 40℃ TO + 85℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

GS5014 / GS5014 LF Dual Ports Lan Transformer , Gigabit Ethernet Module LP5014NL

Quick Details

1.Coil Number: 16

2.CoilStructure:Toroidal

3.SMT,40Pins

4.gigabit ethernet transformer


1000Base-TLan Transformer With Dual Ports Magnetic Modules

Description:
1000 Base-T dual Ports Transformer Modules

Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LP5014NL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 4
Number of Ports QUAD
PCB NO PCB
Package SMT
Package Height (Inches) 0.276 or other
Package Height (mm) 7.00 or other
Package Length (Inches) 1.02 or other
Package Length (mm) 28.00or other
Package Width (Inches) 0.606 or other
Package Width (mm) 15.40 or other
RoHS Compliant YES-RoHS-6
Speed 10/100/1000BASE-TX
Temperature 0 TO 70
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Main P/N LP5014NL, etc


Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min

50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min


Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time
