Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: XMH-01D-E-LB3-1-770
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
PN: |
XMH-01D-E-LB3-1-770 |
Made In China: |
LPJG17333ASNL |
Speed: |
1000 Base-T |
Number Of Ports: |
1X1 |
Sample: |
Free |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN: |
XMH-01D-E-LB3-1-770 |
Made In China: |
LPJG17333ASNL |
Speed: |
1000 Base-T |
Number Of Ports: |
1X1 |
Sample: |
Free |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

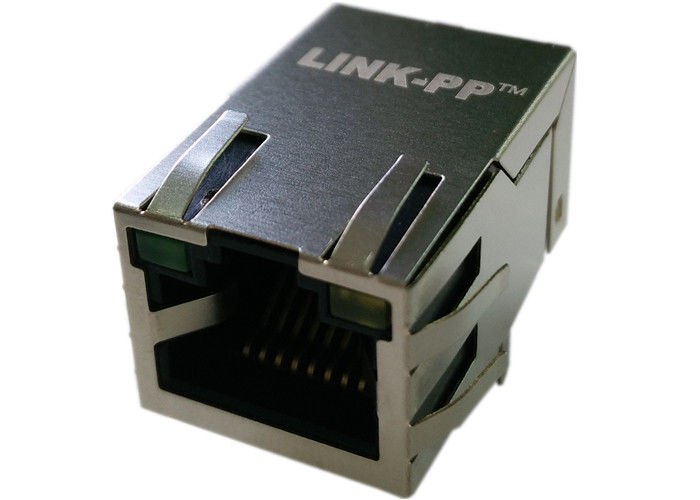

| Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Yellow/Orange&Green LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJG17333ASNL |
| X Multiple Part Number | XMH-01D-E-LB3-1-770 |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | YELLOW/ORANGE&GREEN |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 13.50 |
| Package Length (mm) | 25.40 |
| Package Width (mm) | 16.25 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
