LPJ4011NENL Side Entry Socket RJ45 Connector Replace13F-64GYDPNS2NL

LPJ4011NENL Side Entry Socket RJ45 Connector Replace13F-64GYDPNS2NL
LPJ4011NENL Side Entry Socket RJ45 Connector Replace13F-64GYDPNS2NL LPJ4011NENL Side Entry Socket RJ45 Connector Replace13F-64GYDPNS2NL

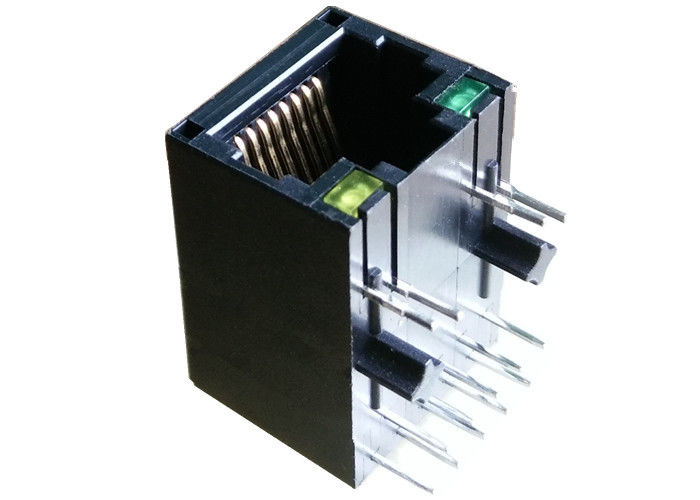

Large Image :  LPJ4011NENL Side Entry Socket RJ45 Connector Replace13F-64GYDPNS2NL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 13F-64GYDPNS2NL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Competitor: 13F-64GYDPNS2NL Replacement: LPJ4011NENL
Interface: Fast Ethernet 100M Samples: Available
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

LPJ4011NENL Side Entry Socket RJ45 Connector Replace13F-64GYDPNS2NL





1. 10/100Base-T
2. 1X1 Tab-down
3. RJ45 modular jack
4. Un-Shield



Description:

Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJ4011NENL
YDS Part Number 13F-64GYDPNS2NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 12.80
Package Length (mm) 20.60
Package Width (mm) 15.25
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
