13F-64GYDPNW2NL RJ45 Connector-jack LPJ0011HENL Crossable 10/100Mbps Ethernet

Name: 13F-64GYDPNW2NL RJ45 Connector-jack LPJ0011HENL Crossable 10/100Mbps Ethernet
Brand: LINK-PP
SKU: 13F-64GYDPNW2NL
Price: 0.05 USD
Availability: InStock
Rating: 4.6 (155 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 13F-64GYDPNW2NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                    rj-45 ethernet jack, modular jacks rj45


Part Number:	13F-64GYDPNW2NL	Cross Part:	LPJ0011HENL
Ethernet:	10/100Base-T	Samples:	Free Available

Part Number:	13F-64GYDPNW2NL
Cross Part:	LPJ0011HENL
Ethernet:	10/100Base-T
Samples:	Free Available

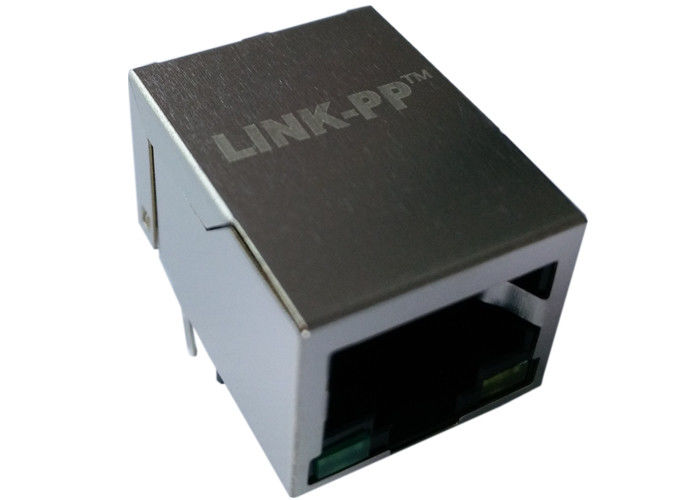

13F-64GYDPNW2NL RJ45 Connector-jack LPJ0011HENL Crossable 10/100Mbps Ethernet

13F-64GYDPNW2NL RJ45 Connector-jack LPJ0011HENL Crossable 10/100Mbps Ethernet

1.10/100Mbps Ethernet

2.1X1 Tab-down with LED in line

3.RJ45 Connector-jack

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
