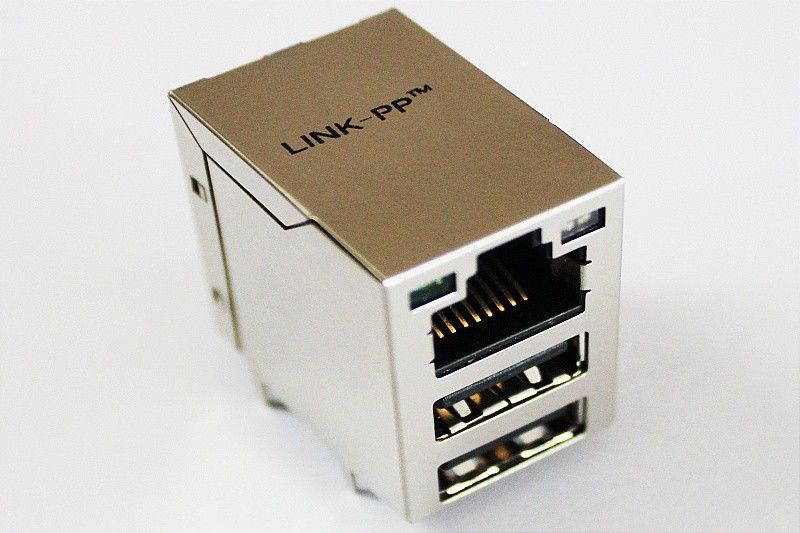

Right Angle Shielded RJ45 Connector PCB Mount , RoHS Compliant XFATM9-USBGY-4

Right Angle Shielded RJ45 Connector PCB Mount , RoHS Compliant XFATM9-USBGY-4
Right Angle Shielded RJ45 Connector PCB Mount , RoHS Compliant XFATM9-USBGY-4

Large Image :  Right Angle Shielded RJ45 Connector PCB Mount , RoHS Compliant XFATM9-USBGY-4

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008, reach
Model Number: XFATM9-USBGY-4

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: 2-3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Detailed Product Description
Product Name: RJ45 USB Connector RJ45 Shielded: Yes
PCB Mounting Orientation: Side Entry (Right Angle)/Top Entry(Vertical) Port Configuration: Single/Multi
Connector Style: Jack Application: Switch, Router, PC Mainboard, SDH, PDH
High Light:

rj45 to usb connector

,

rj45 usb connector combo




Right Angle Shielded RJ45 Connector PCB Mount , RoHS Compliant XFATM9-USBGY-4





Quick Details



1.Stacked USB connector

2.IEEE 802.3af/at

3.Minimum 1500Vrms

4.HUB, PC card, Switch, Router
5.Shielded = Yes




Description:



10/100/1000M RJ45 USB connector with/without leds, meeting IEEE 802.3af/at

POE Shielded RJ45 USB Magjack , PCB / Switch / Router IEEE RJ45



1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85





Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem





Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time



Right Angle Shielded RJ45 Connector PCB Mount , RoHS Compliant XFATM9-USBGY-4 0
