Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJ6011ABNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month

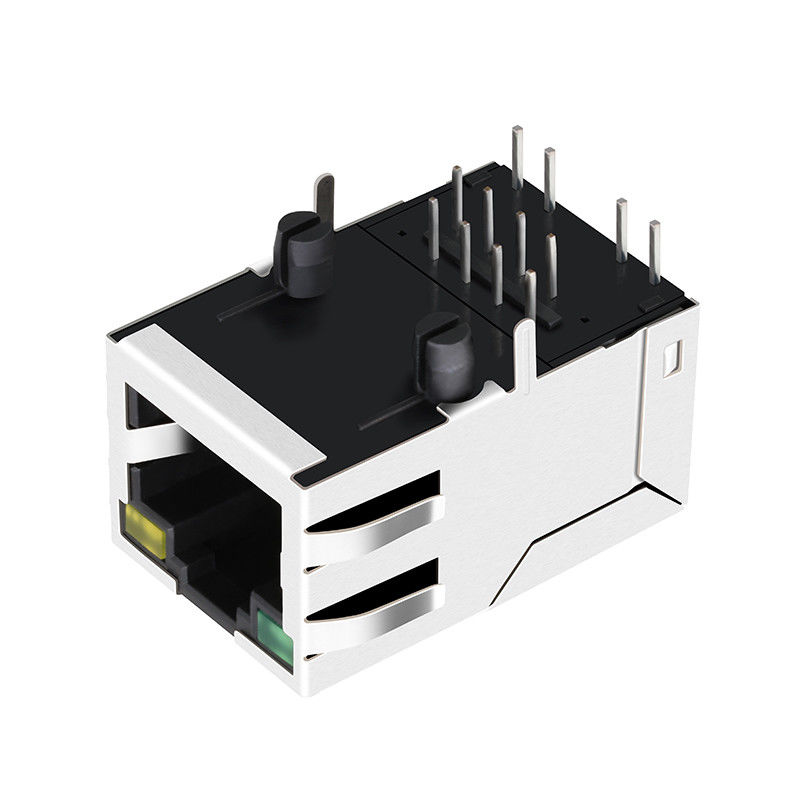

Item: |
XFATM9R-CTLSxu1-4M |
Cross Part: |
LPJ6011ABNL |
Mounting: |
Side Entry Thru-hole |
Ethernet: |
Fast Ethernet |
Indicator: |
LED |
Samples: |
Available |
Item: |
XFATM9R-CTLSxu1-4M |
Cross Part: |
LPJ6011ABNL |
Mounting: |
Side Entry Thru-hole |
Ethernet: |
Fast Ethernet |
Indicator: |
LED |
Samples: |
Available |
|
|
| TEST NOTES(25±5℃) 1.TR:(100KHz,0.1V); TX=1CT:1CT ±3% RX=1CT:1CT ±3%P2.OCL:(100KHz,100mV,8mA,DC Bias) PINS:(P1,P2),(P7,P8)=350uH MIN 3.HIPOT: PINS(P1,P3,P2)TO (J1,J2)=1500VAC FOR 60 SECONDS PINS(P7,P6,P8)TO (J3,J6)=1500VAC FOR 60 SECONDS 4.INSERTION LOSS: -1.0dB MAX @ 0.3MHz TO 100MHz 5.RETURN LOSS: -20dB MIN @ 1MHz TO 10MHz -16dB MIN @ 10MHz TO 30MHz -12dB MIN @ 30MHz TO 60MHz -10dB MIN @ 60MHz TO 100MHz |
6.CROSS TALK: -40dB MIN @ 1MHz TO 30MHz -35dB MIN @ 30MHz TO 60MHz -30dB MIN @ 60MHz TO 100MHz 7.COMMON TO COMMON MODE REJECTION: -30dB MIN @ 1MHz TO 50MHz -20dB MIN @ 50MHz TO 150MHz 8.OPERATING TEMPERATURE: -40℃～+85℃. |
