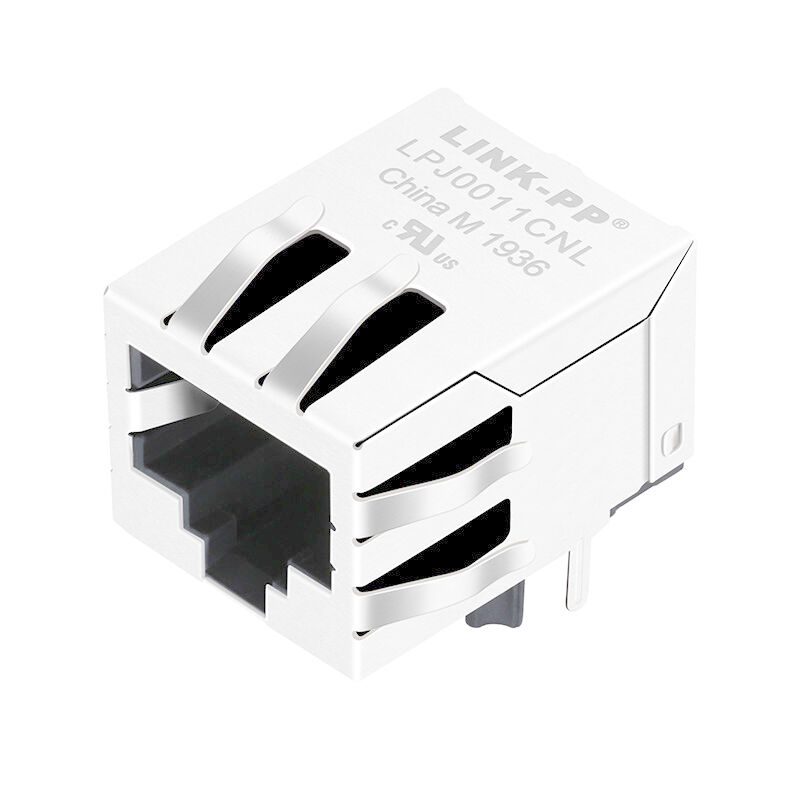

LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL
LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL
LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL
LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL
LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL
LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL
LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL

LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 13F-64ND2NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Item:
13F-64ND2NL
Mounting:
Side Entry (Right Angle)
Cross:
LPJ0011CNL
Shielded:
Yes
LED:
Without Or With
Samples:
Available
Item:
13F-64ND2NL
Mounting:
Side Entry (Right Angle)
Cross:
LPJ0011CNL
Shielded:
Yes
LED:
Without Or With
Samples:
Available
LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL

LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL



  1. 1 x 10/100 Mbit Ehternet
  2. 1X1 Tab-down
  3. RJ45 modular jack
  4. Angled Rj45 Connector
  5. Magnetic designs to support every PHY
  6. Meet or exceed IEEE 802.3 and ANSI X3.263 standards
  7. including 350uH min OCL with 8mA bias
  8. Minimum 1500Vrms isolation per IEEE 802.3 requirement
  9. Designed for 100 base transmission over UTP-5 cable
  10. Size same as RJ-45 modular jack to save PCB board Space
13F-64ND2NL= LPJ0011CNL
LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL 0 LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL 1

ELECTRICAL SPECFICATIONS: @25℃


1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms
8.Operating Temperature Range:0℃ TO 70℃

LPJ0011CNL RJ45 Single Port , Female Jack 10/100Mbps Ethernet Cross 13F-64ND2NL 2

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact
area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max







Tags:

PCB Edge Connector RJ45,

RJ45 POE+,

Magnetic RJ45 Connector
