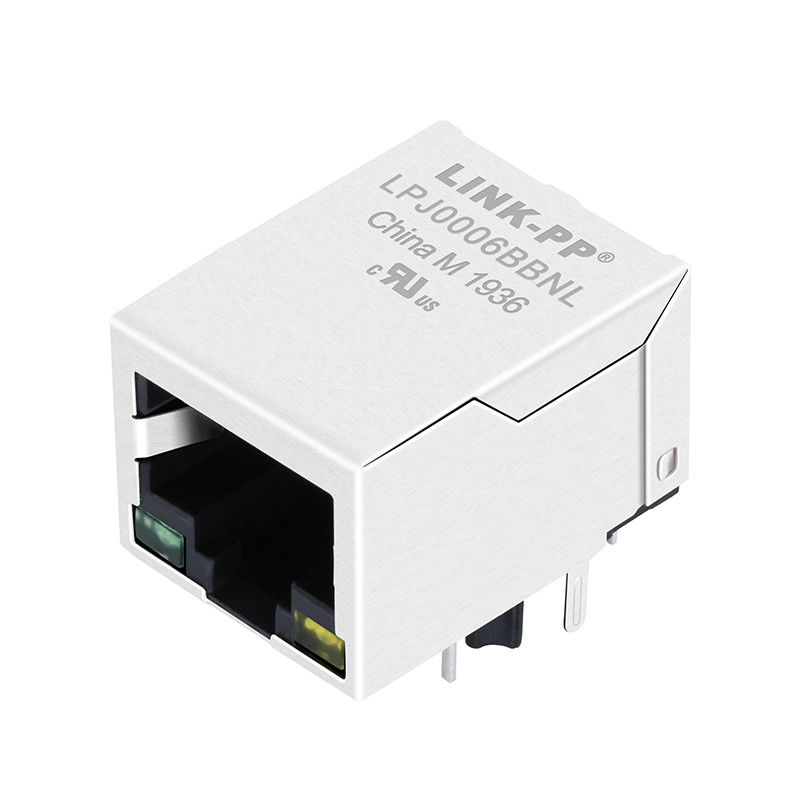

13F-69GYDNW2NL RJ45 Jack Module With Magnetic 10/100 BASE-T LPJ0006BBNL

13F-69GYDNW2NL RJ45 Jack Module With Magnetic 10/100 BASE-T LPJ0006BBNL
13F-69GYDNW2NL RJ45 Jack Module With Magnetic 10/100 BASE-T LPJ0006BBNL
video play

Large Image :  13F-69GYDNW2NL RJ45 Jack Module With Magnetic 10/100 BASE-T LPJ0006BBNL

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJ0006BBNL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Original: 13F-69GYDNW2NL Equivalent: LPJ0006BBNL
PCB Mounting Orientation: Side Entry (Right Angle) Ethernet: 10/100BT
Shielded: Yes Samples: Available
High Light:

13F-69GYDNW2NL

,

J45 Jack With Magnetic

,

RJ45 Jack Module

13F-69GYDNW2NL RJ45 Jack Module With Magnetic 10/100 BASE-T LPJ0006BBNL



  • 1xRj45 10/100 Ethernet
  • RJ45 modular jack
  • 13F-69GYDNW2NL

13F-69GYDNW2NL RJ45 Jack Module With Magnetic 10/100 BASE-T LPJ0006BBNL 0 13F-69GYDNW2NL RJ45 Jack Module With Magnetic 10/100 BASE-T LPJ0006BBNL 1
Electrical Specifications @25℃
1.Turns Ratio:
TX=1CT:1 RX=1CT:1
2.Inductance:350uH Min
3.Insertion Loss:
1-65MHz: -1.0dB Max
4.Return Loss(dB Min):
1-10MHz:-20 10-30MHz:-16
30-60MHz:-12 60-100MHz:-10
5.Crosstalk(dB Min):
1-30MHz:-40 30-60MHz:-35
60-100MHz:-30
6.CMR(dB Min):
1-50MHz:-30 50-150MHz:-20
7.Hipot: 1500Vrms @ 60Hz 1 MIN
8.Operating Temperature: 0℃～+70℃.		 13F-69GYDNW2NL RJ45 Jack Module With Magnetic 10/100 BASE-T LPJ0006BBNL 2
