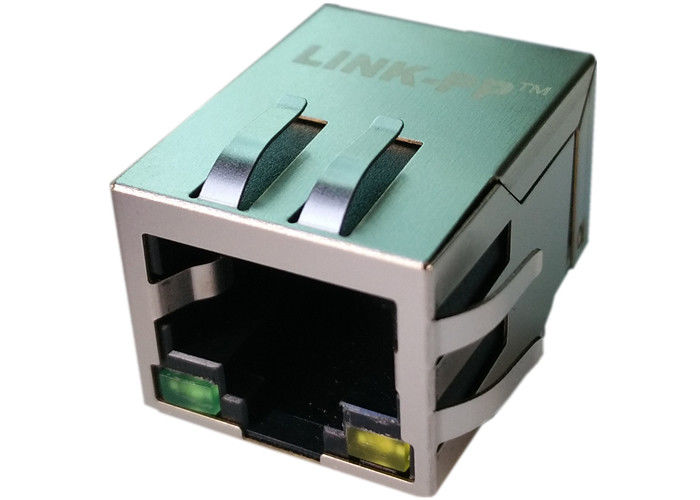

Side Entry 10Pin RJ45 Magnetic Jack Module 8P8C 6605444-6 MAG45 Modular Jack

Name: Side Entry 10Pin RJ45 Magnetic Jack Module 8P8C 6605444-6 MAG45 Modular Jack
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 6605444-6
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 6605444-6

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    single port rj45, shielded rj45 plugs


Product Name:	6605444-6	Made In China:	SM-LPJG0833XXNL
PCB Mounting Orientation:	Side Entry (Right Angle)	Jack Type:	Magnetics RJ45
Shielded / Filter:	Yes	Samples:	Available

Product Name:	6605444-6
Made In China:	SM-LPJG0833XXNL
PCB Mounting Orientation:	Side Entry (Right Angle)
Jack Type:	Magnetics RJ45
Shielded / Filter:	Yes
Samples:	Available

Side Entry 10Pin RJ45 Magnetic Jack Module 8P8C 6605444-6 MAG45 Modular Jack

Quick Details

1.10/100/1000 BASE

2.1X1 Tab-DOWN

3. RJ45 modular jack

Description:

10Pin RJ45 Magnetic Jack Module 8P8C 6605444-6 MAG45 Modular Jack

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1 Port

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time
