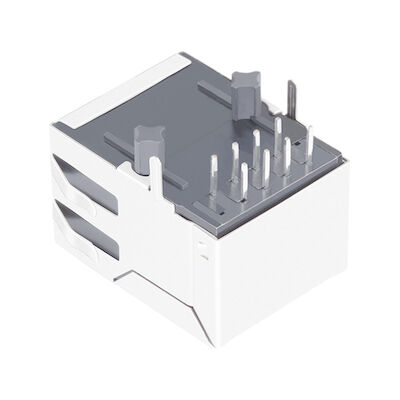

13F-69ND2NL 10/100 Mbit Ethernet RJ45 Shielded Jack LPJ0006CNL

13F-69ND2NL 10/100 Mbit Ethernet RJ45 Shielded Jack LPJ0006CNL
13F-69ND2NL 10/100 Mbit Ethernet RJ45 Shielded Jack LPJ0006CNL
video play

Large Image :  13F-69ND2NL 10/100 Mbit Ethernet RJ45 Shielded Jack LPJ0006CNL

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJ0006CNL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Original: 13F-69ND2NL Equivalent: LPJ0006CNL
Mounting: Side Entry (Right Angle) Jack Type: RJ45 Female
Shielded: Yes Samples: Available
High Light:

13F-69ND2NL

,

Ethernet RJ45 Jack

,

RJ45 Jack

13F-69ND2NL 10/100 Mbit Ethernet RJ45 Shielded Jack LPJ0006CNL



1 x 10/100 Mbit Ethernet Connectivity
2.1X1 Tab-DOWN
3. RJ45 modular jack



13F-69ND2NL 10/100 Mbit Ethernet RJ45 Shielded Jack LPJ0006CNL 0 13F-69ND2NL 10/100 Mbit Ethernet RJ45 Shielded Jack LPJ0006CNL 1
Electrical Specifications @25℃
1.Turns Ratio:
TX=1CT:1 RX=1CT:1
2.Inductance: 350uH Min
@100KHz,100mV,8mA DC Bias
3.Insertion Loss:
1～65MHz: -1.0dB Max
4.Return Loss(dB Min):
1～10MHz:-20 10～30MHz:-16
30～60MHz:-12 60～100MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-30 50～150MHz:-20
7.Hipot: 1500Vrms @ 60Hz 1 MIN
8.Operating Temperature: 0℃～+70℃.		 13F-69ND2NL 10/100 Mbit Ethernet RJ45 Shielded Jack LPJ0006CNL 2
