UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex

China UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex supplier
UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex supplier UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex supplier UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex supplier UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex supplier UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex supplier UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex supplier

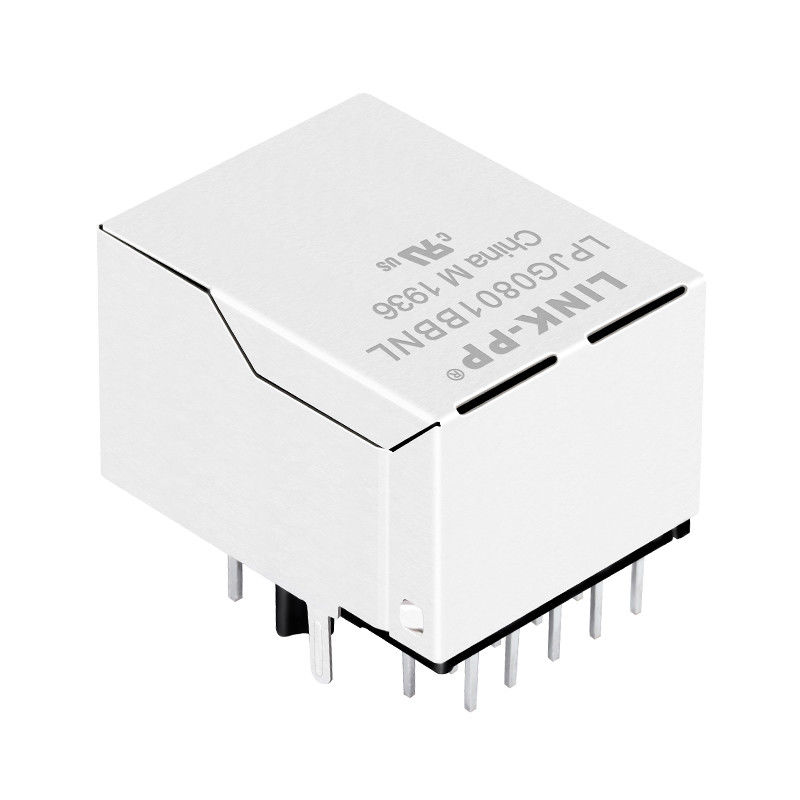

Large Image :  UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: UE-LA1S109-43LF

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specification: UE-LA1S109-43LF P/N: LPJG0801BBNL
PCB Mounting Orientation: Side Entry (Right Angle) Jack Type: RJ45 Female
Magnetics: 8 Cores Magnetics Samples: Available

UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex

1.10/100/1000 BASE RJ45 Single Port
2.1X1 Tab-DOWN UE-LA1S109-43LF
3. RJ45 modular jacks LPJG0801BBNL LINK-PP
4. Isolation@60HZ: Input to Output :1500Vrms

ELECTRICAL SPECFICATIONS @25℃ UE-LA1S109-43LF , LPJG0801BBNL Gigabit Lan Port 10/100/1000 Full Duplex
1.Turn Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃
