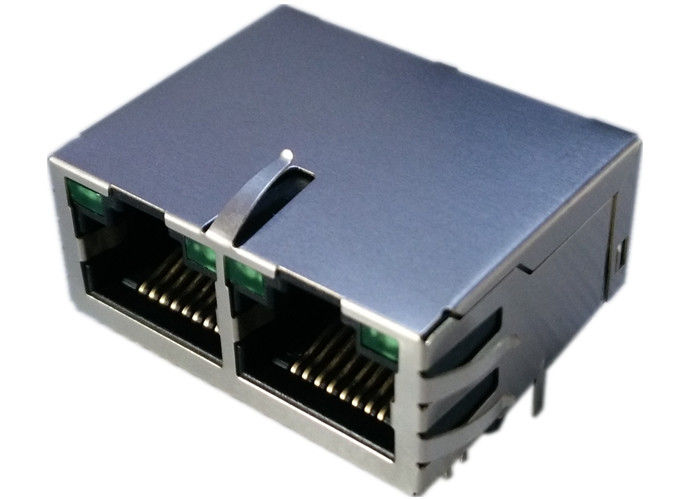

1840548-1 Rj-45 10/100/1000M LPJG28837AFNL Female Jack Magnetics Connectors

Name: 1840548-1 Rj-45 10/100/1000M LPJG28837AFNL Female Jack Magnetics Connectors
Brand: LINK-PP
SKU: 1840548-1
Price: 0.11 USD
Availability: InStock
Rating: 4.6 (161 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: SGS, UL,CE,ISO9001:2008, REACH

Model Number: 1840548-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                modular jacks rj45, dual rj45 jack


Part No:	LPJG28837AFNL	Specification:	1840548-1
Lan I/O:	2x 10/100/1000M	Indicator:	LED
Gender:	Female,Receptacle	Samples:	Available

Part No:	LPJG28837AFNL
Specification:	1840548-1
Lan I/O:	2x 10/100/1000M
Indicator:	LED
Gender:	Female,Receptacle
Samples:	Available

1840548-1 Rj-45 10/100/1000M LPJG28837AFNL Female Jack Magnetics Connectors

1840548-1 TRP Equivalent Part LPJG28837AFNL
CONN MAGJACK 2PORT 1000 BASE-T
Right Angle rj45 modular plugs
Tab-up Rj45 Female To Female Connector
Lead free / RoHS Compliant

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±3%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH MIN @100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.1dB MAX @ 1-100MHz
4.Return Loss:
-18dB MIN @ 1-40MHz
-14dB MIN @ 60MHz
-12dB MIN @ 80MHz
-10dB MIN @ 100MHz
5.Cross Talk:
-35dB TYP @ 1-100MHz
6.Common Mode Rejection:
-38dB TYP @ 0.1-30MHz
-35dB TYP @ 30-60MHz
-30dB TYP @ 60-100MHz
7.Isolation: 1500Vrms
8.Operating Temperature: 0℃ TO 70℃.
