TMRJGS-8P8GAB-D12110-L | LPJG0833HANL Magnetic RJ45 Jack Gigabit

Name: TMRJGS-8P8GAB-D12110-L | LPJG0833HANL Magnetic RJ45 Jack Gigabit
Brand: LINK-PP
SKU: TMRJGS-8P8GAB-D12110-L
Rating: 4.8 (125 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: TMRJGS-8P8GAB-D12110-L

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specifications:	TMRJGS-8P8GAB-D12110-L	P-N:	LPJG0833HANL
Ethernet:	10/100/1000 Base-T	LED:	Flexible Indicator
TAB Direction:	Down	Samples:	Free

Specifications:	TMRJGS-8P8GAB-D12110-L
P-N:	LPJG0833HANL
Ethernet:	10/100/1000 Base-T
LED:	Flexible Indicator
TAB Direction:	Down
Samples:	Free

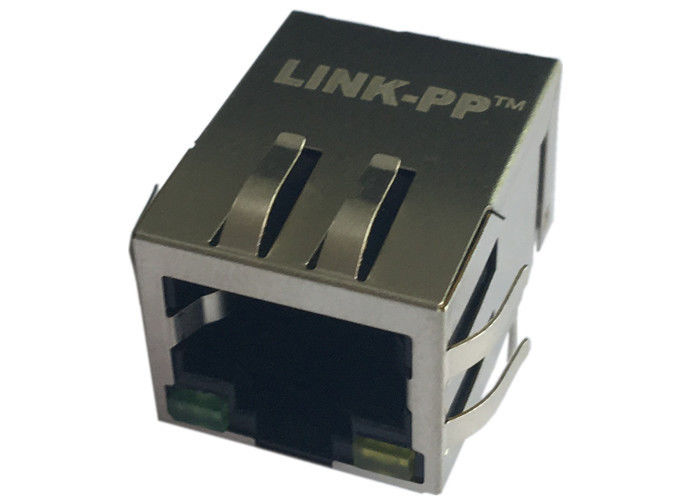

TMRJGS-8P8GAB-D12110-L | LPJG0833HANL Magnetic RJ45 Jack Gigabit

TMRJGS-8P8C-XX-D12110-L | LPJG0833HANL Magnetic RJ45 Jack Gigabit

10/100/1000 Base-T
1X1 Tab-down
Through hole RJ45 modular jack
21.3mm length RJ45 Magjack
MRJGS-8P8C-GAB-D12110-L
MRJGS-8P8C-GBB-D12110-L
MRJGS-8P8C-GCB-D12110-L
MRJGS-8P8C-GDB-D12110-L

Description:

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3ab

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
