Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

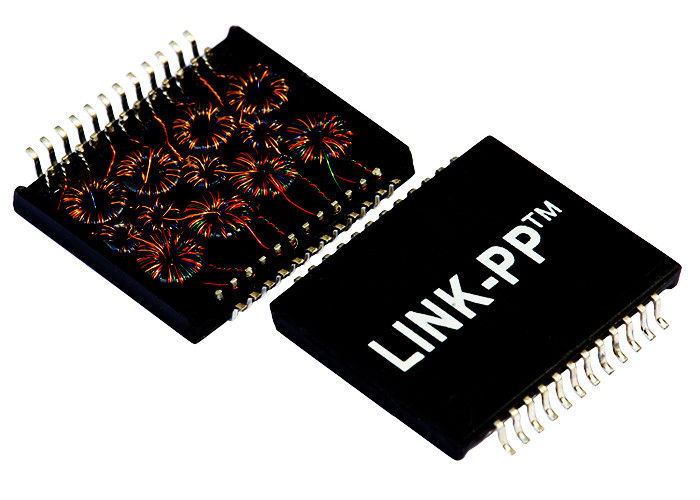

Model Number: H2009NL / HX2009NL(T)
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item No: |
H2009NL / HX2009NL(T) |
Category: |
PoE Magnetics,10/100BASE-TX VoIP Module |
Turns Ratio: |
1CT : 1CT |
Mounting: |
Surface Mount |
Size / Dimension: |
13.16mm L X 15.11mm W |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Item No: |
H2009NL / HX2009NL(T) |
Category: |
PoE Magnetics,10/100BASE-TX VoIP Module |
Turns Ratio: |
1CT : 1CT |
Mounting: |
Surface Mount |
Size / Dimension: |
13.16mm L X 15.11mm W |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| H2009NL | 1:1 Ethernet Transformer | Gigabit Lan Filter | 1000 Base-T SMD |
| Number of ports | Applications | Turns Ratio | Power Over Ethernet |
| Dual Port | 10/100Base-T | 1:1 | IEEE 802.3af/ANSI |
| Packaging | Tab Direction | Mounting Type | Contact Finish |
| Reel , Carton | -- | SMT/SMD | -- |
| Pins Number | Shielding | Isolation Voltage | LED Color |
| 24 Pins | -- | 1500 Vrms | --- |
Detailed Information:
| LINK-PP LP5009nl 100% CROSS PULSE HX2009NL | |
| LINK-PP Part Number | LP5009NL |
| Pulse Part Number | HX2009NL |
| Speed | 10/100BDual |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE) |
| Package | SMD |
| Temperature | 0℃ TO +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Package Height (Inches) | 0.241 |
| Package Height (mm) | 6.12 |
| Package Length (Inches) | 0.595 |
| Package Length (mm) | 15.11 |
| Package Width (Inches) | 0.518 |
| Package Width (mm) | 13.16 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
