TLA-6T717W | LPJ16093DNL Magnetic RJ45 Jack 1x10/100Base-T Latch-up RoHS

Name: TLA-6T717W | LPJ16093DNL Magnetic RJ45 Jack 1x10/100Base-T Latch-up RoHS
Brand: LINK-PP
SKU: TLA-6T717W
Rating: 4.9 (199 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: TLA-6T717W

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Specifications:	TLA-6T717W	Updated PN:	LPJ16093DNL
TAB Direction:	UP	RoHS:	Yes
Ethernet:	10/100 Base-T	Samples:	Free

Specifications:	TLA-6T717W
Updated PN:	LPJ16093DNL
TAB Direction:	UP
RoHS:	Yes
Ethernet:	10/100 Base-T
Samples:	Free

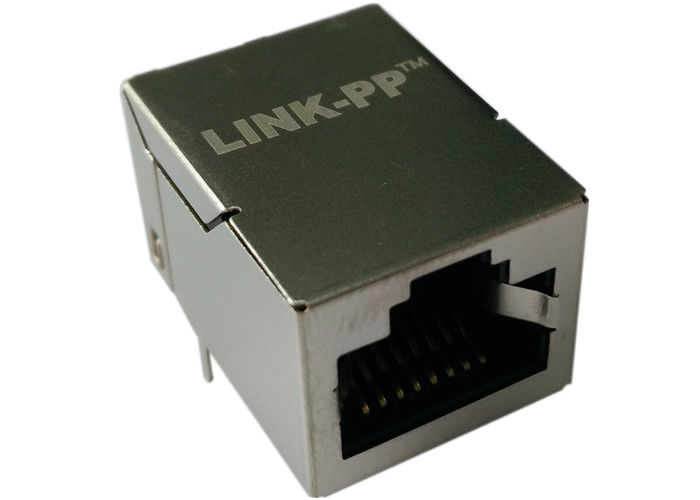

TLA-6T717W | LPJ16093DNL Magnetic RJ45 Jack 1x10/100Base-T Latch-up RoHS

TLA-6T717W | LPJ16093DNL Magnetic RJ45 Jack 1x10/100Base-T Latch-up RoHS

1.HUB, PC card, Switch, Router

2.PC Mainboard, SDH, PDH, IP Phone, xDSL modem

3. Printed Circuit Board networking and communication equipments

4. LPJ16093DNL LINK-PP

5. Compatible to Specification TLA-6T717W

Description:

1X1 Tab-up 10/100M RJ45 connector with leds, dimension:

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = SMT

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
