213A-11XAX-R Series Magnetic RJ45 Jack | LPJ4011ADNL 100Base-T Connector

China 213A-11XAX-R Series Magnetic RJ45 Jack | LPJ4011ADNL 100Base-T Connector supplier

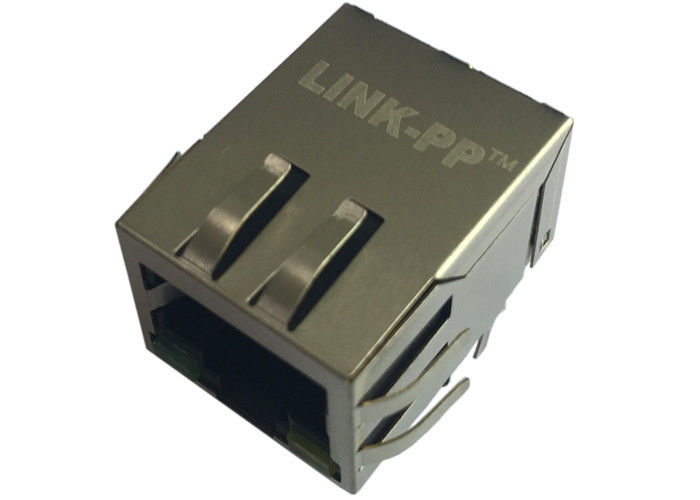

Large Image :  213A-11XAX-R Series Magnetic RJ45 Jack | LPJ4011ADNL 100Base-T Connector

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 213A-11XAX-R

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specifications: 213A-11XAX-R P/N: LPJ4011ADNL
Ethernet: 1x10/100Base Mechanical: 21.25x15.90x13.40mm
Indicators: LEDs Samples: Free

213A-11XAX-R Series Magnetic RJ45 Jack | LPJ4011ADNL 100Base-T Connector

  1. 10/100BASE Ethernet Jack
  2. 1X1 Tab-DOWN
  3. RJ45 modular jack
  4. 213A-11AAA-R
  5. 213A-11AAB-R
  6. 213A-11CAA-R
  7. 213A-11CAB-R
  8. 213A-11EAA-R
  9. 213A-11EAB-R
  10. 213A-11GAA-R
  11. 213A-11GAB-R
Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃. / -40℃ TO 85℃.
