Home > products > RJ45 Modular Jack > HFJ11-2450E-L21RL , LPJ0011GDNL Network RJ45 Single Port 8p8c Connectors

HFJ11-2450E-L21RL , LPJ0011GDNL Network RJ45 Single Port 8p8c Connectors

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJ11-2450E-L21RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

single port rj45

,

shielded rj45 plugs

Specification:
HFJ11-2450E-L21RL
P/N:
LPJ0011GDNL
PCB Mounting Orientation:
Side Entry (Right Angle)
Jack Type:
RJ45 Female
Filter:
1x10/100 Magnetics
Samples:
Available
Specification:
HFJ11-2450E-L21RL
P/N:
LPJ0011GDNL
PCB Mounting Orientation:
Side Entry (Right Angle)
Jack Type:
RJ45 Female
Filter:
1x10/100 Magnetics
Samples:
Available

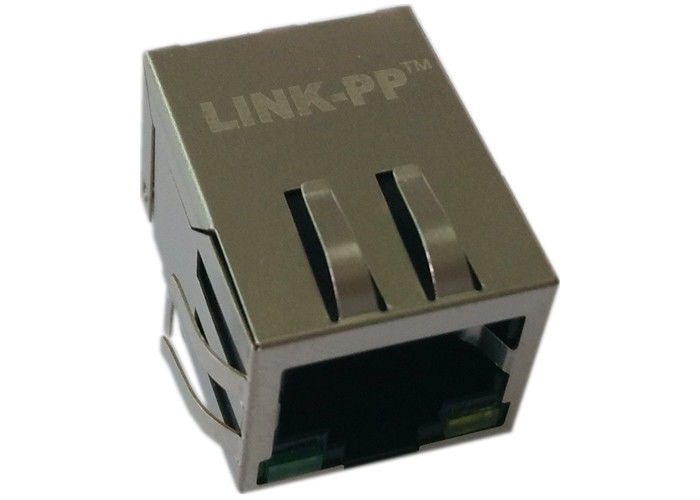

HFJ11-2450E-L21RL , LPJ0011GDNL Network RJ45 Single Port 8p8c Connectors
HFJ11-2450E-L21RL , LPJ0011GDNL Network RJ45 Single Port 8p8c Connectors


  1. HFJ11-2450E-L21RL ,10/100 Base-T
  2. 1x1 Tab-Down 10/100BASE-TX RJ45 LPJ0011GDNL
  3. Through hole RJ45 modular jack
  4. 21.3mm length RJ45 Magjack Angled Connector
  5. IEEE802.3u Compliant
  6. 350uH min OCL at 8mA DC Bias Across the
  7. Full Temp Range
  8. 100% Electrical Testing
  9. 1500Vrms Hi-Pot
  10. Proprietary Robust Contact Design



Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃.
