HFJ11-2450E-LS21 RJ45 Single Port , LPJ0011AANL Network Connector rj-45

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJ11-2450E-LS21

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

single port rj45

,

rj45 smd connector

Specification:
HFJ11-2450E-LS21
Cross Part:
LPJ0011AANL
PCB Mounting Orientation:
Side Entry (Right Angle)
Jack Type:
RJ45
Filter:
10/100Base-T
Samples:
Available
Specification:
HFJ11-2450E-LS21
Cross Part:
LPJ0011AANL
PCB Mounting Orientation:
Side Entry (Right Angle)
Jack Type:
RJ45
Filter:
10/100Base-T
Samples:
Available

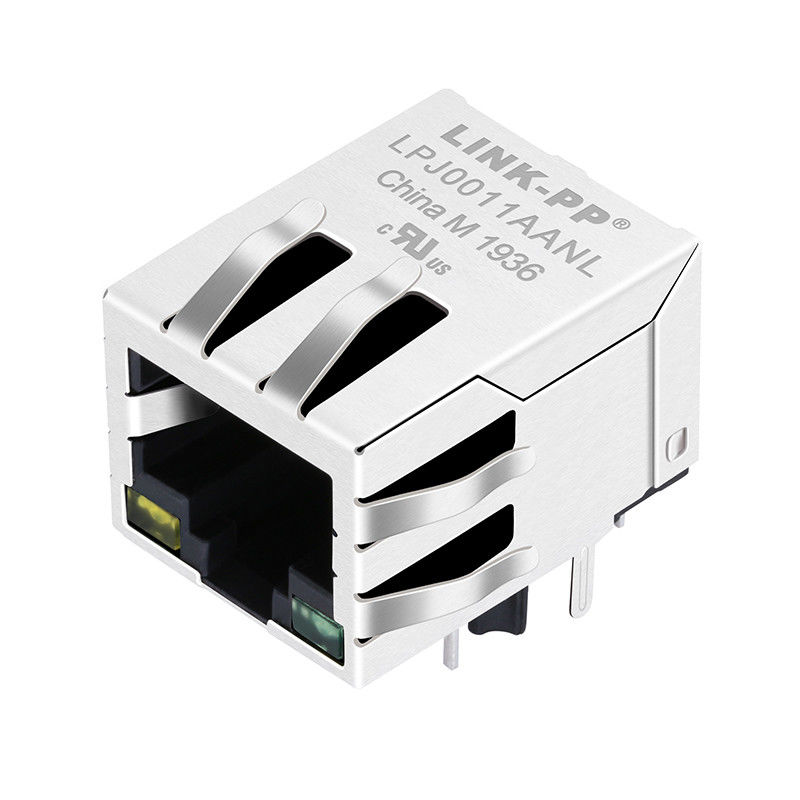

HFJ11-2450E-LS21 RJ45 Single Port , LPJ0011AANL Network Connector rj-45

HFJ11-2450E-LS21 RJ45 Single Port , LPJ0011AANL Network Connector rj-45



1.10/100 Base-T Halo HFJ11-2450E-LS21
2.1X1 Tab-down LINK-PP LPJ0011AANL
3.Through hole RJ45 modular jack
4.21.3mm length RJ45 Magjack

1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,
2600 staff,
100% test
Flexible delivery time
