Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

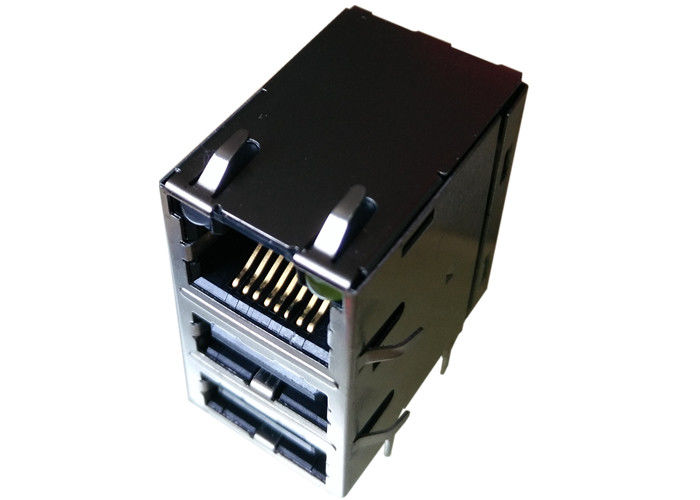

Model Number: RU1-A36AFB1A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN: |
RU1-A36AFB1A |
Made In China: |
SM-LPJU5104AANL |
PCB Mounting Orientation: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 Conn USB |
Shielded / Filter: |
Yes |
Ethernet: |
Fast Lan |
PN: |
RU1-A36AFB1A |
Made In China: |
SM-LPJU5104AANL |
PCB Mounting Orientation: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 Conn USB |
Shielded / Filter: |
Yes |
Ethernet: |
Fast Lan |
TEST NOTES(25±5℃)
1.TR:(100KHZ,0.1V);
TX=1CT:1±2%P RX=1CT:1CT±2%P2.LX:(100KHZ,100mV,8mA,DC Bias)
PINS:(P2,P3),(P4,P5)=350uH MIN
3.HIPOT: 1500Vrms
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 100MHz
5.RETURN LOSS:
-18dB MIN @ 1MHz TO 30MHz
-16dB MIN @ 30MHz TO 60MHz
-12dB MIN @ 60MHz TO 80MHz
6.CROSS TALK:
-40dB MIN @1MHz TO 10MHz
-35dB MIN @32MHz TO 60MHz
-30dB MIN @60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @1MHz TO 50MHz
-20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0～70℃
