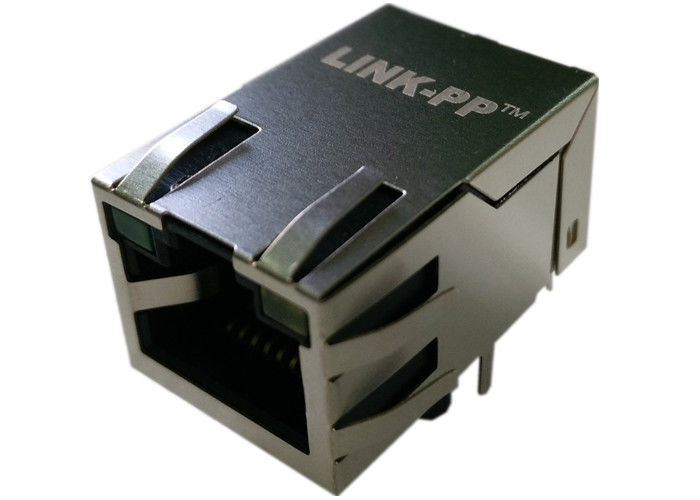

LPJ1035AHNL RJ45 Modular Jack SD-48025-006 Right Angle PCB Connector

LPJ1035AHNL RJ45 Modular Jack SD-48025-006 Right Angle PCB Connector
LPJ1035AHNL RJ45 Modular Jack SD-48025-006 Right Angle PCB Connector

Large Image :  LPJ1035AHNL RJ45 Modular Jack SD-48025-006 Right Angle PCB Connector

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: SD-48025-006
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Item: SD-48025-006 Part Number: LPJ1035AHNL
Ethernet: 10/100Base-T Samples Free: LPJ1035AHNL
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

LPJ1035AHNL RJ45 Modular Jack SD-48025-006 Right Angle PCB Connector

1.10/100 Base-T
2.1X1 Tab-up
3.Through hole RJ45 modular jack
4.25.4mm length RJ45 Magjack
LPJ1035AHNL RJ45 Modular Jack SD-48025-006 Right Angle PCB Connector 0 LPJ1035AHNL RJ45 Modular Jack SD-48025-006 Right Angle PCB Connector 1



Description:

1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Tag:

industrial rj45 connector,

rj-45 ethernet jack,

modular jacks rj45
