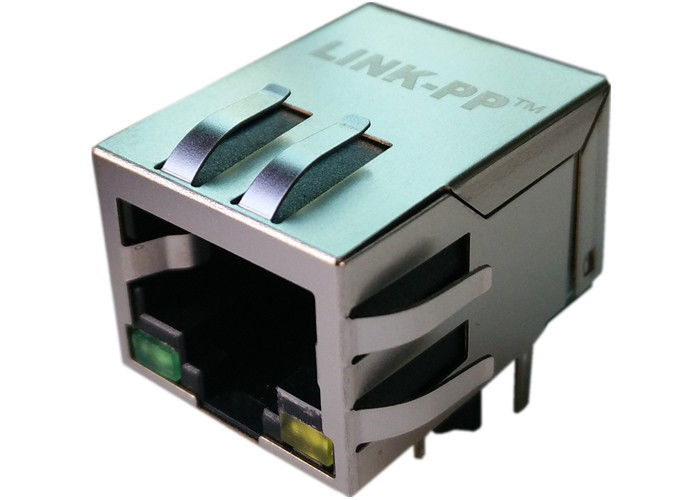

RB1-215BTAMA Gigabit 10Pin Magnetic RJ45 Jack Single Port With LEDs

China RB1-215BTAMA Gigabit 10Pin Magnetic RJ45 Jack Single Port With LEDs supplier
RB1-215BTAMA Gigabit 10Pin Magnetic RJ45 Jack Single Port With LEDs supplier RB1-215BTAMA Gigabit 10Pin Magnetic RJ45 Jack Single Port With LEDs supplier

Large Image :  RB1-215BTAMA Gigabit 10Pin Magnetic RJ45 Jack Single Port With LEDs

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: RB1-215BTAMA

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Part No: RB1-215BTAMA Made In China: SM-LPJG4801GENL
Rate: 1000Base-T Gigabit Port: 1x1
LEDs: Green-Yellow Hipot: 1500V

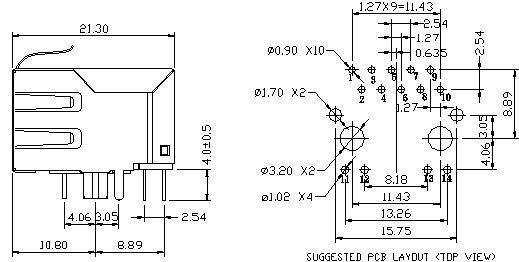

RB1-215BTAMA Gigabit 10Pin Magnetic RJ45 Jack Single Port With LEDs

Electrical Specifications @25℃
1.Turns Ratio(±2%): 1CT∶1CT
2.OCL: 350uH Min
  @100KHz/0.1V With 8mA DC Bias
3.Insertion Loss:
  1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
  1-30MHz:-18      30-60MHz:-16
  60-80MHz:-12     80-100MHz:-10
5.Crosstalk(dB MIN):
  1-30MHz:-40      30-60MHz:-35
  60-100MHz:-30
6.CMR(dB MIN):
  1-50MHz:-40      50-150MHz:-30
7.HI-POT: 1500Vrms
8.Operating Temperature: -40℃~+85℃.

NOTES:
1.Designed to support application,such as SOHO(ADSL
  modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
  Housing:Thermoplastic UL94V-0
  Contact/Shield: Copper alloy
  Shield plating: Nickel
  Contact plating: Gold 6 micro-inches min.In contact
                   area.
4.Wave solder tip temperature: 265℃ Max
  Wave solder tip temperature time: 5 Sec Max

RB1-215BTAMA Gigabit 10Pin Magnetic RJ45 Jack Single Port With LEDs
