1x RJ45 Modular Jack S253E-8P8C-GAB-L Side Entry 8P8C LPJEF110CNL

China 1x RJ45 Modular Jack S253E-8P8C-GAB-L Side Entry 8P8C LPJEF110CNL supplier

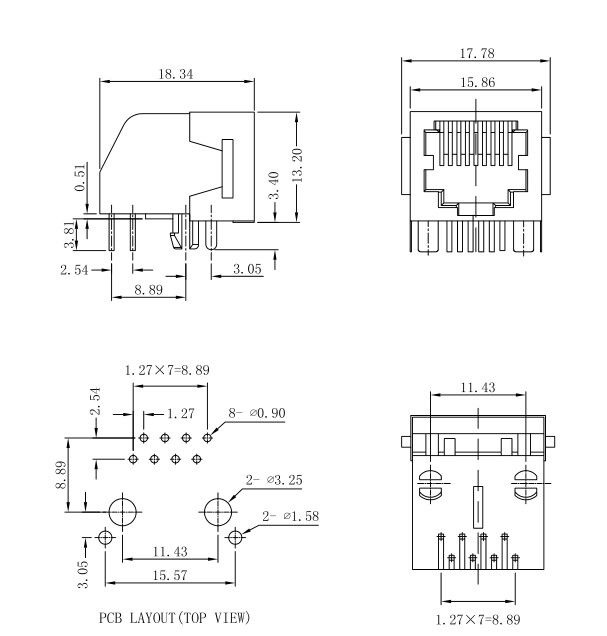

Large Image :  1x RJ45 Modular Jack S253E-8P8C-GAB-L Side Entry 8P8C LPJEF110CNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: S253E-8P8C-GAB-L

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specifications: S253E-8P8C-GAB-L Type: LPJEF110CNL
PCB Mounting Orientation: Side Entry (Right Angle) Mounting: PCB
RoHS Compliant: Yes Samples: Available

1x RJ45 Modular Jack S253E-8P8C-GAB-L Side Entry 8P8C LPJEF110CNL

1.RJ45 without magnetics S253E-8P8C-GAB-L
2.1X1 Tab-down LPJEF110CNL
3.Through hole RJ45 modular jack

Description:

1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
2600 staff,
100% test
Flexible delivery time
