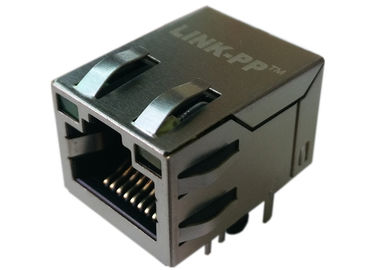

LPJ16213AENL | RT7-114AAG1A RJ45 Modular Jack 10/100 Magnetics

LPJ16213AENL | RT7-114AAG1A RJ45 Modular Jack 10/100 Magnetics
LPJ16213AENL | RT7-114AAG1A RJ45 Modular Jack 10/100 Magnetics LPJ16213AENL | RT7-114AAG1A RJ45 Modular Jack 10/100 Magnetics

Large Image :  LPJ16213AENL | RT7-114AAG1A RJ45 Modular Jack 10/100 Magnetics

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RT7-114AAG1A
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Specifications: RT7-114AAG1A P/N: LPJ16213AENL
Mechanical: 21.30x15.95x13.40mm Schematic: 4 Coils, 1CT:1CT;1CT:1CT
Ethernet: 1x 10/100Base-Tx Samples: Free
High Light:

rj-45 ethernet jack

,

industrial rj45 connector



LPJ16213AENL | RT7-114AAG1A RJ45 Modular Jack 10/100 Magnetics

  1. RJ45 with 10/100 magnetics LPJ16213AENL
  2. Compatible to RT7-114AAG1A 1X1 Tab-up
  3. Through hole RJ45 modular jack
  4. 21.3mm length RJ45 Magjack

1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
2600 staff,
100% test
Flexible delivery time

Tag:

industrial rj45 connector,

rj-45 ethernet jack,

modular jacks rj45
