Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJMG163118101NR
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Series: |
Amphenol ICC RJMG Series |
Ethernet: |
10/100 Base-T |
Number Of Positions/Contacts Per Port: |
8P8C |
Shielding: |
Shielded, EMI Fingers |
Performance Category: |
Cat 5 |
Mounting Angle: |
Right Angle |
Series: |
Amphenol ICC RJMG Series |
Ethernet: |
10/100 Base-T |
Number Of Positions/Contacts Per Port: |
8P8C |
Shielding: |
Shielded, EMI Fingers |
Performance Category: |
Cat 5 |
Mounting Angle: |
Right Angle |

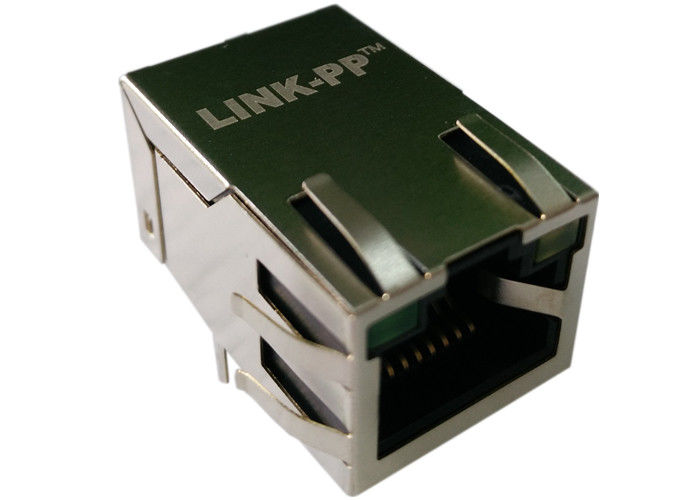

The RJMG163118101NR is a specific type of RJ45 connector with integrated magnetics designed for 10/100 BASE-T Ethernet applications.
Connector Type: 10/100 BASE-T Female RJ45 Connector
Insulator Material: Black thermoplastic polyester
Contact Material: Gold-plated over-surface phosphor bronze
Mounting Type: Through Hole Right Angle
LED Options: Green LED-1 (right side) and Green LED-2 (left side)
Resistors: 4 x 75Ω resistors, 1000pF (2kV) transmit shunt choke
Turns Ratio: 1:1 (transmit)
Operating Temperature Range: 0 to 70°C
Soldering Temperature: 220°C for 10 seconds
Dimensions:
Length: 16.7mm
Width: 13.5mm
Depth: 13.98mm
Other Features:
Accommodates various PCB configurations
Improved EMI performance
Low mode conversion
Integrated magnetics
1. Communications & Networking:
2. Computers & Computer Peripherals:
3. Consumer Electronics:
4. Data Centers & Computing:
5. Industrial & Instrumentation:
6. Medical Devices:
7. Telecommunications:
| Amphenol ICC RJMG Series Part Numbers | |
|---|---|
| Description | Part Numbers |
| RJMG 1x1, Right Angle, DIP type, standard tab-up type, 100BASE-T & 1000BASE-T, LED options | RJMG264 series |
| RJMG 1x1, Right Angle, DIP type, low profile with Short body, tab-up,100BASE-T and 1000BASE-T, LED options | RJMG2012 series |
| RJMG 1x1, Right Angle, DIP type, Sink type low profile, tab-up, 100BASE-T, and 1000BASE-T. LED options | RJMG2018 series |
| RJMG 1x1, Right Angle, DIP type, long body,100BASE-T and 1000BASE-T, LED options | RJMG2010 series |
| RJMG 1x1, 100BASE-T and 1000BASE-T, LED options, Vertical type | RJMG1V series |
| RJMG 1x1, 100BASE-T, Right Angle, SMT type, tab-down, LED options | RJMG19W series |
| RJMG 1x1, 2.5G, Right Angle, DIP type, tab-up, LED options | RJMG401 series |
| RJMG 1x1, 2.5G, Right Angle, DIP type, tab-up, LED options, and PoE function | RJMG401 series |
| RJMG 1x1, 5G, Right Angle, DIP type, tab-up, LED options, and PoE function | RJMG501 series |
| RJMG 1x1, 10G, Right Angle, DIP type, tab-down, lower profile type | RJMG301 series |
| RJMG 1x1, 10G, Right Angle, DIP type, tab-down, sink type | RJMG3018M series |
