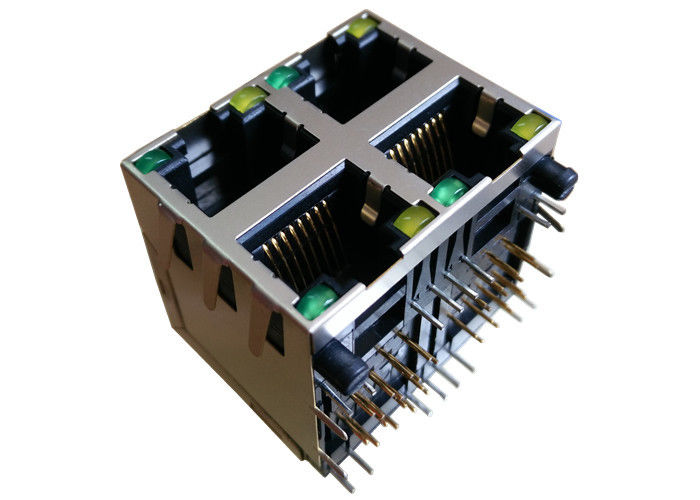

XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c

Name: XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c
Brand: LINK-PP
SKU: XRJD-S-22-8-8-1
Price: 0.11 USD
Availability: InStock
Rating: 4.9 (165 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: XRJD-S-22-8-8-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Product #:	XRJD-S-22-8-8-1	Made In China:	SM-LPJE107XAGNL
Shielded:	Shield With LEDs	Application:	Telecome Equipments
Mounting Orientation:	Side Entry (Right Angle)	Samples:	Available

Product #:	XRJD-S-22-8-8-1
Made In China:	SM-LPJE107XAGNL
Shielded:	Shield With LEDs
Application:	Telecome Equipments
Mounting Orientation:	Side Entry (Right Angle)
Samples:	Available

XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c

Quick Details

1.Cat5/5e

2.2x2 Tab-down

3.Through hole RJ45 modular jack

4.27.9 mm length RJ45 Magjack
NOTES:
MACHANICAL:
1.HOUSING MATERIAL :GLASS FILLED POLYESTER OR HIGH TEMP. UL94V-0.
2.CONTACT MATERIAL :PHOSPHOR BRONZE t=0.35mm.
3.PLATING :CONTACT AREA-SELECTIVE GOLD PLATING.
TAILS-PLATED TIN OVER NICKEL.
4.OPERATING LIFE :750 CYCLES MIN
5.PCB RETENTION PRE-SOLDER :1 LB MIN
6.PCB RETENTION POST-SOLDER :10 LBS MIM
7.LED SIZE :3.2*2.0*4.0*P=2.29mm
ELECTRICAL:
1.VOLTAGE RATING :125VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :50 MILLIOHMS MAX.
4.INSULATION RESISTANCE :1000MEGOHMS MIN @ 500V DC.
5.DIELECTRIC STRENGTH :1000V AC RMS 60Hz. 1MIN.
ENVIRONMENTAL:
1.STORAGE :-40℃ +85℃.
2.OPERATION :-40℃ +85℃.
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.

XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c 0
