RJLB-001TC1 | LPJ4068EENL RJ45 Modular Jack 10/100base Transmission

Name: RJLB-001TC1 | LPJ4068EENL RJ45 Modular Jack 10/100base Transmission
Brand: LINK-PP
SKU: RJLB-001TC1
Price: 0.05 USD
Availability: InStock
Rating: 4.8 (133 reviews)

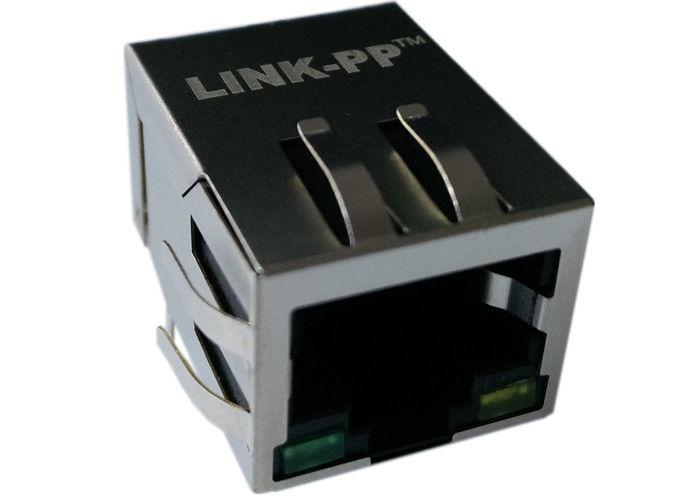

Large Image : RJLB-001TC1 | LPJ4068EENL RJ45 Modular Jack 10/100base Transmission

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	RJLB-001TC1

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4200K-PCS/Month

Contact Now

Detailed Product Description

Specifications:	RJLB-001TC1	P/N:	LPJ4068EENL
Mechanical:	21.30x15.90x13.40mm	Schematic:	4 Coils,1CT:1CT;1CT:1CT
Ethernet:	1x 10/100base	Samples:	Free
High Light:	rj-45 ethernet jack , modular jacks rj45

RJLB-001TC1 | LPJ4068EENL RJ45 Modular Jack 10/100base Transmission

10/100 Base-T LPJ4068EENL
1X1 Tab-down Compatible to RJLB-001TC1
Through hole RJ45 modular jack
21.3mm length RJ45 Magjack

Turn Ratio(±2%):	TX=1CT:1CT RX=1CT:CT
Inductance OCL	350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss	-1.0dB MAX @ 1-65MHz
Return Loss	-20dB MIN @ 1-10MHz
	-16dB MIN @ 10-30MHz
	-12dB MIN @ 30-60MHz
	-10dB MIN @ 60-100MHz
Cross talk	-40dB MIN @ 1-30MHz
	-35dB MIN @ 30-60MHz
	-30dB MIN @ 60-100MHz
Common Mode Rejection	-30dB MIN @ 1-50MHz
Common Mode Rejection	-20dB MIN @ 50-150MHz
Hipot Test	1500Vrms MIN
Operating Temperature Range	0℃ TO 70℃. / -40℃ TO 85℃.
