Product Name:	RJ-10149E	P-N:	LPJ0013AHNL
TAB Direction:	Down	Mounting:	THT PCB Mounting
LED Indicator:	LED Colors Can Be Selected	Samples:	Free

Product Name:	RJ-10149E
P-N:	LPJ0013AHNL
TAB Direction:	Down
Mounting:	THT PCB Mounting
LED Indicator:	LED Colors Can Be Selected
Samples:	Free

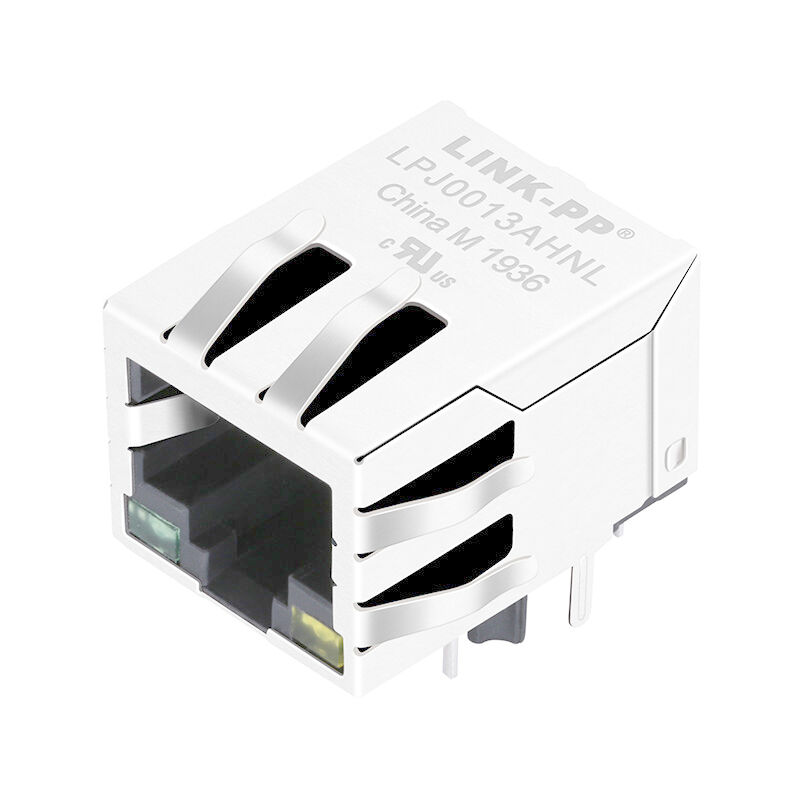

RJ-10149E Magnetic RJ45 Jack LPJ0013AHNL 90 Degree Socket Connector

RJ-10149E Magnetic RJ45 Jack LPJ0013AHNL 90 Degree Socket Connector

1X1 Tab-down LPJ0013AHNL LINK-PP
Through hole RJ45 modular jack
21.3mm length RJ45 Magjack
Compatible to RJ-10149E

Description:

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3u

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
