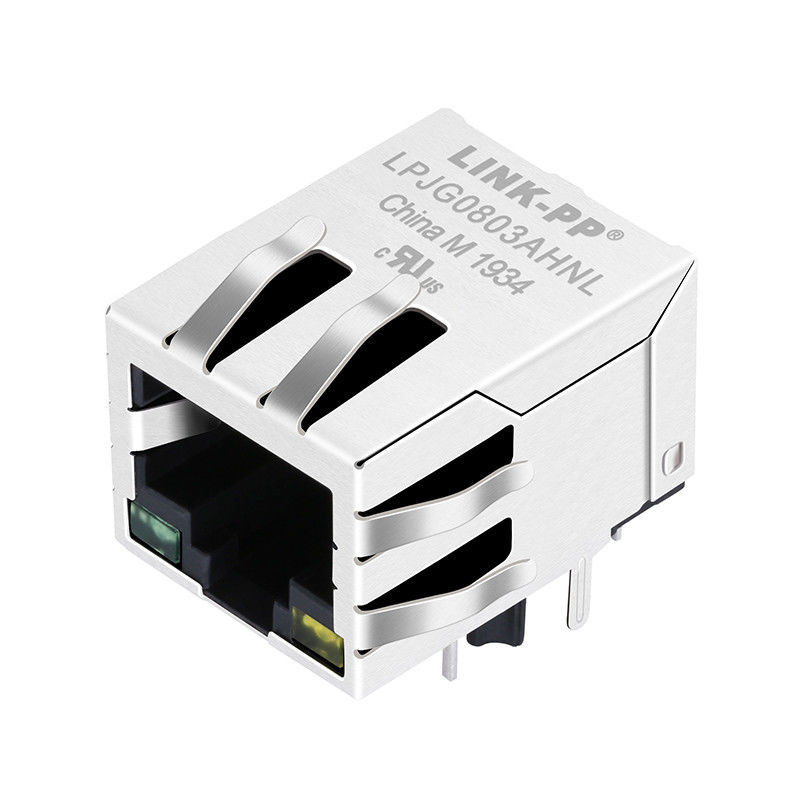

LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base

LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base
LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base

Large Image :  LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJG0803AHNL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Specifications: LPJG0803AHNL P/N: LPJG0803AHNL
Mechanical: 21.25x15.90x13.40mm Schematics: 12 Coils,1CT:1;1CT:1
High Light:

modular jacks rj45

,

industrial rj45 connector

LPJG0803AHNL | Gigabit Rj45 Modular Jack , Single Port 10/100/1000Base

  1. 1X1 Tab-down LPJG0803AHNL
  2. Through hole RJ45 modular jack
  3. 21.3mm length RJ45 Magjack

1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3ab
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
