Product Name:	RB1-126BAG1A	Type:	RJ45 Connector
TAB Direction:	Down	RoHS Compliant:	Yes
LED Indicator:	LED Colors Can Be Selected	Contact Termination Type:	Through Hole/Surface Mount

Product Name:	RB1-126BAG1A
Type:	RJ45 Connector
TAB Direction:	Down
RoHS Compliant:	Yes
LED Indicator:	LED Colors Can Be Selected
Contact Termination Type:	Through Hole/Surface Mount

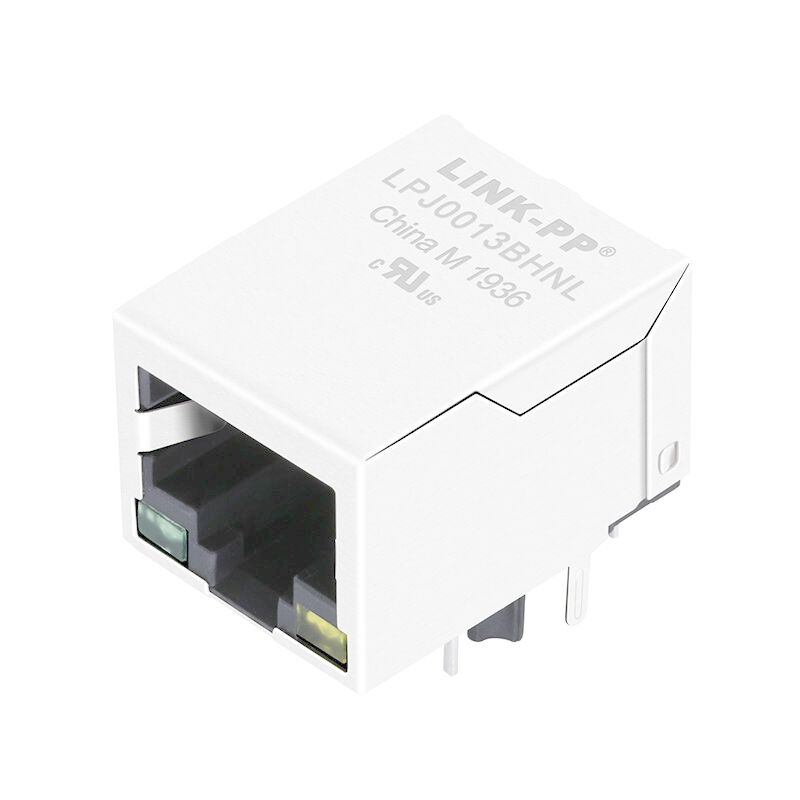

RB1-126BAG1A | LPJ0013BHNL 1x 10/100 Magnetic RJ45 Jack

RB1-126BAG1A | LPJ0013BHNL 1x 10/100 Magnetic RJ45 Jack

LPJ0013BHNL Compatible to RB1-126BAG1A
1x 10/100 Magnetic RJ45 Jack For Data I/O
Through hole RJ45 modular jack
21.3mm length RJ45 Magjack

Description:

Single Port RJ45 Modular Plug with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number	LPJ0013BHNL
UDE Part Number	RB1-126BAG1A
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
Diodes	NO DIODES
LED Option	GREEN/YELLOW
Latch	TAB DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.524
Package Height (mm)	13.30
Package Length (Inches)	0.839
Package Length (mm)	21.30
Package Width (Inches)	0.627
Package Width (mm)	15.93
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITHOUT
Speed	10/100 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

RB1-126BAG1A | LPJ0013BHNL 1x 10/100 Magnetic RJ45 Jack 0

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3u

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
