RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX

China RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX supplier
RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX supplier RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX supplier RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX supplier RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX supplier RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX supplier RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX supplier

Large Image :  RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE, ISO9001:2008,REACH
Model Number: RB1-125BHQ1A

Payment & Shipping Terms:

Minimum Order Quantity: 200/500
Price: Supportive
Packaging Details: 60 pcs/ tray,22 tray /carton/37*30*30 cm, 10 KGS/1320 pcs/ carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description

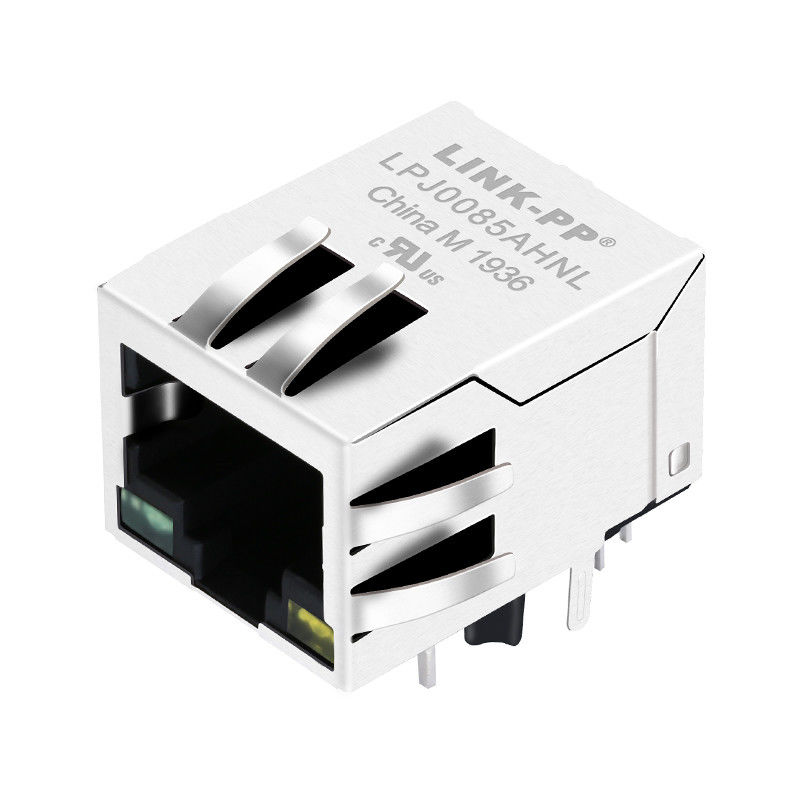

Specification: RB1-125BHQ1A Part No: LPJ0085AHNL
Connector Type: Rj45 Power Over Ethernet Applications: 10/100Base-T Power Over Ethernet
Mounting Type: Through Hole Orientation: 90~ Angle (Right)
Termination: Solder Samples: Available

RB1-125BAK1A Magnetic RJ45 1X1 Tab Down Through Hole 10/100/1000 Base-T

RB1-125BHQ1A
Rj45 Power Over Ethernet
10/100Base-T POE Ethernet
POE Rj45 Pinout
esigning Model: RB1-125BHQ1A
  • FastJack™ Single Port 10/100Mbps POE RJ-45 Connectors
  • Designed for network interface card application.
  • Designed to meet IEEE802.3af requirement.
  • Available in all turn ratios used by LAN ICmanufactures.
  • Primary center taps available for additional EMIreduction.
  • Simplest magnetic component to place and route on PCB.
  • Conserves minimizing PCB space.
  • Mass Production Model: LPJ0085AHNL Pin to Pin Compatible Analogue

RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TXRB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX

Description
Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJG0803AHNL
UDE Part Number RDA-125BAK1A / RB1-125BAK1A / RG11884-FA127-L02
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



RB1-125BHQ1A Rj45 Power Over Ethernet With Integrated Magnetics 10/100Base-TX

ELECTRICAL SPECFICATIONS@25℃
1.Turn Ratio(± 2%):
TX=1:1 RX=1:1
2.Inductance OCL:
350uH MIN@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @1-100MHz
4.Return Loss:
-18dB MIN @1-30MHz
-16dB MIN @30-60MHz
-12dB MIN @60-80MHz
5.Cross talk:
-30dB MIN @1-100MHz
6.Common Mode Rejection:
-30dB MIN @1-100MHz
7.HIPOT TEST:1500VAC,60sec
8.OPERATING TEMPERATURE RANGE:-40℃ TO +85℃
