1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE

Name: 1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE
Brand: LINK-PP
SKU: PTC0001-01
Rating: 4.6 (195 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: PTC0001-01

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specifications:	PTC0001-01	P-N:	LPJF0017CNL
TAB Direction:	Down	RoHS Compliant:	Yes
Ethernet:	1x 10/100	Samples:	Available

Specifications:	PTC0001-01
P-N:	LPJF0017CNL
TAB Direction:	Down
RoHS Compliant:	Yes
Ethernet:	1x 10/100
Samples:	Available

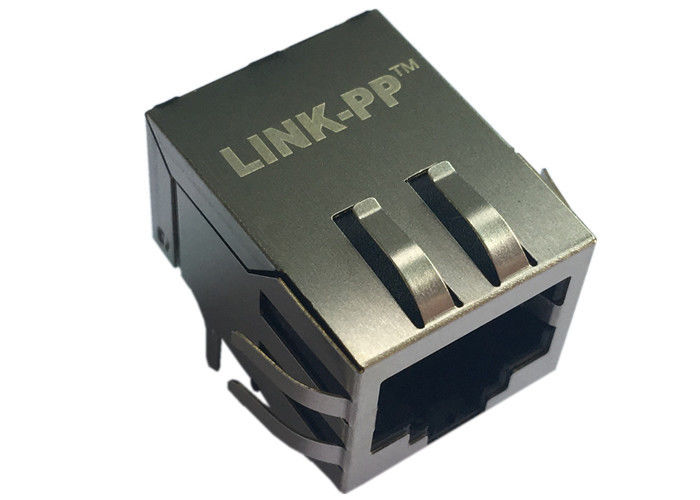

1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE

1x Magnetic RJ45 Jack PTC0001-01 | LPJF0017CNL LAN 10/ 100BASE

Feature - LAN 10/ 100BASE T Low Profile RJ45 Jack With Magnetic module
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN IC manufactures.
♦ Primary center taps available for additional EMI reduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Contains termination resistors , magnetic and connector.
♦ Conserves PCB space.

♦ PTC0002-01

♦ PTC0003-01

♦ PTC0004-01

♦ PTC0006-01

♦ PTC0007-01

♦ PTC0008-01

♦Shield ……………… 0.25mm Thickness C5191 with Nickel Plated
♦Housing……………Standard Material PBT , Glass Filled Polyester UL94V-0
Standard Color Black
♦Contact Pin………..Plastic : NyLon-46 Glass Filled , UL94V-0 , Standard Color Black
Pin : Phosphor Bronze Wire t0.35*w0.45
Plating : Phosphor Bronze Gold Plating Over Nickel

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
