P26-105-18U7 | LPJ16221AFNL 10/100Base Magnetic RJ45 Jack

China P26-105-18U7 | LPJ16221AFNL 10/100Base Magnetic RJ45 Jack supplier
P26-105-18U7 | LPJ16221AFNL 10/100Base Magnetic RJ45 Jack supplier P26-105-18U7 | LPJ16221AFNL 10/100Base Magnetic RJ45 Jack supplier

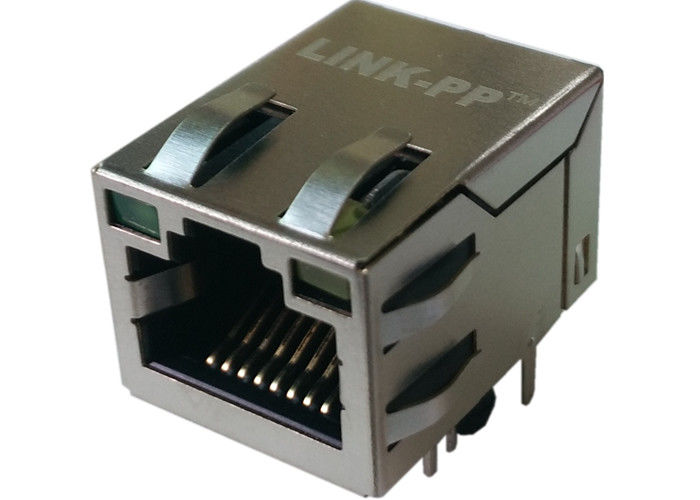

Large Image :  P26-105-18U7 | LPJ16221AFNL 10/100Base Magnetic RJ45 Jack

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: P26-105-18U7

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specifications: P26-105-18U7 P-N: LPJ16221AFNL
TAB Direction: UP RoHS Compliant: Yes
Indicators: LED-Green Samples: Free

P26-105-18U7 | LPJ16221AFNL 10/100Base Magnetic RJ45 Jack



1.10/100 Base-T LPJ16221AFNL

2.1X1 Tab-up P26-105-18U7

3.Through hole RJ45 modular jack

4. 21.3 mm length RJ45 Magjack


Description:


1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3u

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85



Applications:



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



2600 staff,

100% test

Flexible delivery time
