1-5569262-1 Rj45 Jack Equivalent pin to pin Ethernet Connector Horizental Entry

Name: 1-5569262-1 Rj45 Jack Equivalent pin to pin Ethernet Connector Horizental Entry
Brand: LINK-PP
SKU: 5569262-1
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (139 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 5569262-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 usb connector combo


Mfg No:	1-5569262-1	Equivalent:	LPJE308CNL
I/O:	2x4 Port Rj45 To Ethernet	Application:	Switch, Router, PC Mainboard, SDH, PDH Etc
Mounting:	THT PCB	Cross Rf:	LPJE308CNL = 1-5569262-1
Files:	3D STEP IGS PDF Sheet

Mfg No:	1-5569262-1
Equivalent:	LPJE308CNL
I/O:	2x4 Port Rj45 To Ethernet
Application:	Switch, Router, PC Mainboard, SDH, PDH Etc
Mounting:	THT PCB
Cross Rf:	LPJE308CNL = 1-5569262-1
Files:	3D STEP IGS PDF Sheet

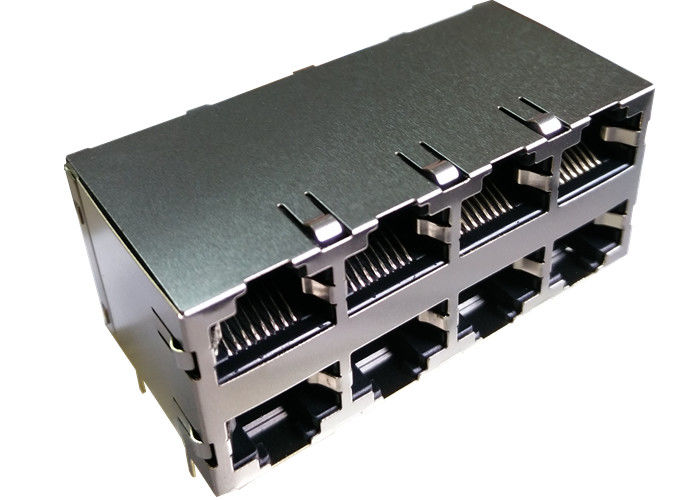

1-5569262-1 Rj45 Jack Equivalent pin to pin Ethernet Connector Horizental Entry

1-5569262-1 Rj45 Jack Equivalent pin to pin Ethernet Connector Horizental Entry

1.2X4 Port Stacked RJ45 magjack

2. RJ45 PCB connector Horizental Entry No Magnetics

3.HUB, PC card, Switch RJ45 modular jack

4.SDH, PDH, IP Phone RJ45 jack

Description:

2X4 port Stacked RJ45 with/without leds,

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 2 x 4

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

I/O Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

20 years production experience,

100% test

Flexible delivery time

CIF to all of the world
