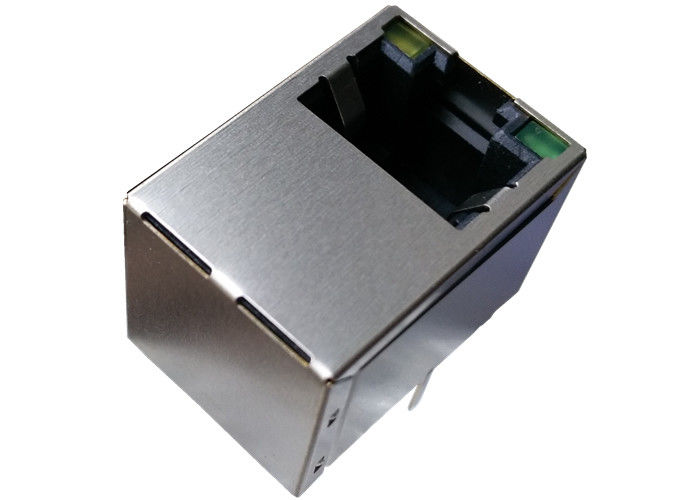

LPJD0820BENL | RJ45 Gigabit Jack Vertical Model 10/100/1000Base-T

LPJD0820BENL | RJ45 Gigabit Jack Vertical Model 10/100/1000Base-T
LPJD0820BENL | RJ45 Gigabit Jack Vertical Model 10/100/1000Base-T LPJD0820BENL | RJ45 Gigabit Jack Vertical Model 10/100/1000Base-T

Large Image :  LPJD0820BENL | RJ45 Gigabit Jack Vertical Model 10/100/1000Base-T

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJD0820BENL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specification: LPJD0820BENL P/N: LPJD0820BENL
Mechanical: 23.15x16.10x16.76mm Schematic: 8 Coils,1CT:1CT
Ethernet: 1x 10/100/1000Base-T Samples: Available
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

LPJD0820BENL | RJ45 Gigabit Jack Vertical Model 10/100/1000Base-T



  1. HUB, PC card, Switch, Router
  2. PC Mainboard, SDH, PDH, IP Phone, xDSL modem
  3. Printed Circuit Board networking and communication equipments
  4. Vertical 1000Base-T Magjack rj45


1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = SMT
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85


Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:


2600 staff,
100% test
Flexible delivery time
