Home ProductsRJ45 Modular Jack

MJF13T36L-KF06B3GY-0808 | LPJ0017GENL RJ45 Modular Jack 10/100Base-T

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

MJF13T36L-KF06B3GY-0808 | LPJ0017GENL RJ45 Modular Jack 10/100Base-T

MJF13T36L-KF06B3GY-0808 | LPJ0017GENL RJ45 Modular Jack 10/100Base-T
MJF13T36L-KF06B3GY-0808 | LPJ0017GENL RJ45 Modular Jack 10/100Base-T MJF13T36L-KF06B3GY-0808 | LPJ0017GENL RJ45 Modular Jack 10/100Base-T

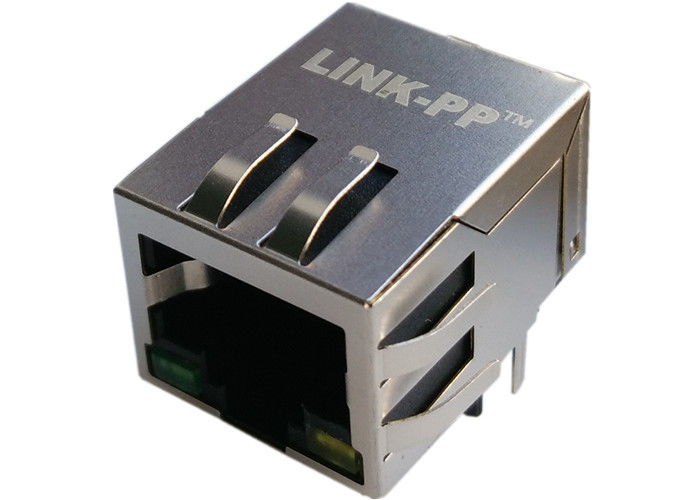

Large Image :  MJF13T36L-KF06B3GY-0808 | LPJ0017GENL RJ45 Modular Jack 10/100Base-T

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: MJF13T36L-KF06B3GY-0808
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specifications: MJF13T36L-KF06B3GY-0808 P/N: LPJ0017GENL
Mechanical: 21.30x15.90x13.40mm Schematic: 4 Coils
Indicators: LEDs Samples: Free
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

MJF13T36L-KF06B3GY-0808 | LPJ0017GENL RJ45 Modular Jack 10/100Base-T
  1. LINK-PP 10/100 Base-T LPJ0017GENL
  2. Compatible to 1X1 Tab-down MJF13T36L-KF06B3GY-0808
  3. Through hole RJ45 modular jack
  4. 21.3mm length RJ45 Magjack
  5. 1 x 1 Port RJ45 Modular Jack , 100Base RJ 45 Modular Connector

Description:

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3u
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85



Applications

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage



2600 staff,
100% test
Flexible delivery time
