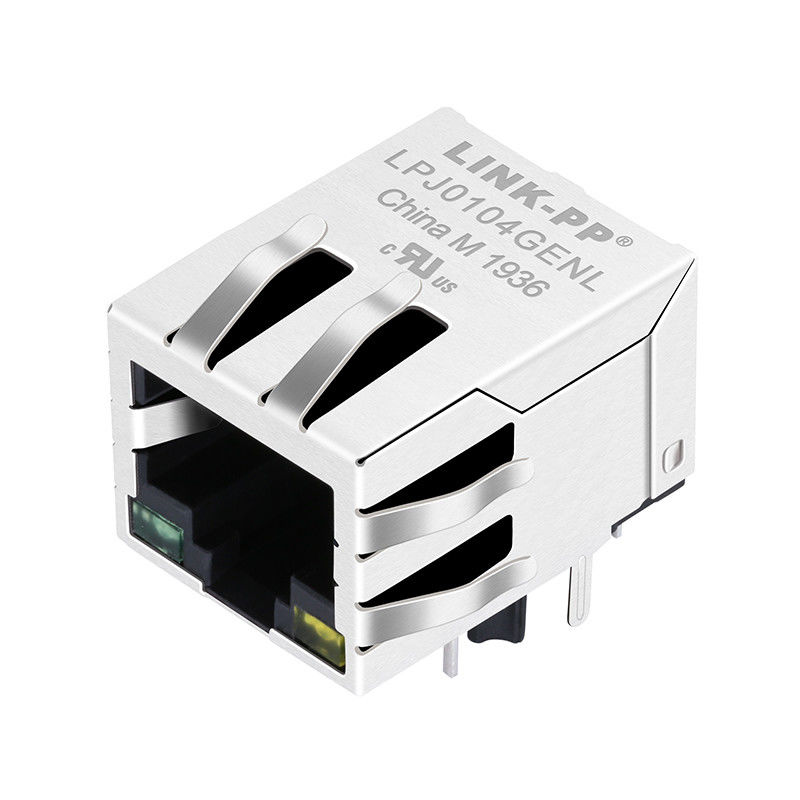

Name: MIC64013-5180T | LPJ0104GENL RJ45 Modular Jack 10/100Base-Tx Ethernet
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: MIC64013-5180T
Price: 0.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: MIC64013-5180T

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    modular jacks rj45, industrial rj45 connector


Specifications:	MIC64013-5180T	P/N:	LPJ0104GENL
Mechanical:	21.30x15.90x13.40mm	Schematic:	5 Coils,1CT:1CT;1CT:1CT
Speed:	Power 10/100Base	Samples:	Available

Specifications:	MIC64013-5180T
P/N:	LPJ0104GENL
Mechanical:	21.30x15.90x13.40mm
Schematic:	5 Coils,1CT:1CT;1CT:1CT
Speed:	Power 10/100Base
Samples:	Available

MIC64013-5180T | LPJ0104GENL RJ45 Modular Jack 10/100Base-Tx Ethernet

MIC64013-5180T | LPJ0104GENL RJ45 Modular Jack 10/100Base-Tx Ethernet

10/100 Base-T MIC64013-5180T
1X1 Tab-down LPJ0104GENL Compatible
Through hole RJ45 modular jack
21.3mm length RJ45 Magjack
Ethernet Transformer RJ45 Modular Jack Hi-Pot Transfer

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
