Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJE309CNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
997517XX-01 |
P.N: |
LPJE309CNL |
Port: |

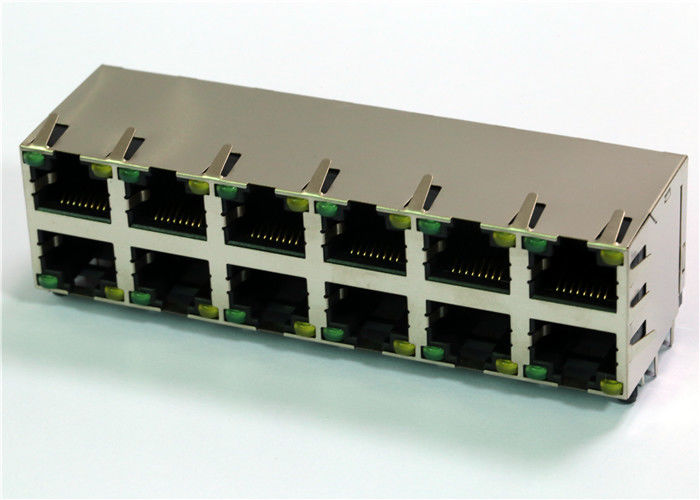

2x6 Port |
LEDs: |
With Or Without |
Shield: |
Shielded |
Samples: |
Available |
Files: |
3D Step PDF IGS Datasheet |
Spec: |
997517XX-01 |
P.N: |
LPJE309CNL |
Port: |
2x6 Port |
LEDs: |
With Or Without |
Shield: |
Shielded |
Samples: |
Available |
Files: |
3D Step PDF IGS Datasheet |
MACHANICAL:
1.HOUSING MATERIAL :GLASS FILLED POLYESTER OR HIGH TEMP. UL94V-0.
2.CONTACT MATERIAL :PHOSPHOR BRONZE t=0.35mm.
3.PLATING :CONTACT AREA-SELECTIVE FLEXIBLE GOLD PLATING.
TAILS-PLATED TIN OVER NICKEL.
4.OPERATING LIFE :750 CYCLES MIN
5.PCB RETENTION PRE-SOLDER :1 LB MIN
6.PCB RETENTION POST-SOLDER :10 LBS MIM
ELECTRICAL:
1.VOLTAGE RATING :125VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :50 MILLIOHMS MAX.
4.INSULATION RESISTANCE :1000MEGOHMS MIN @ 500V DC.
5.DIELECTRIC STRENGTH :1500VAC RMS 60Hz. 1MIN.
ENVIRONMENTAL:
1.STORAGE :-40℃ +85℃.
2.OPERATION :-40℃ +85℃.
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.
UL CERTIFICATION: FILE NUMBBE E484635
