Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

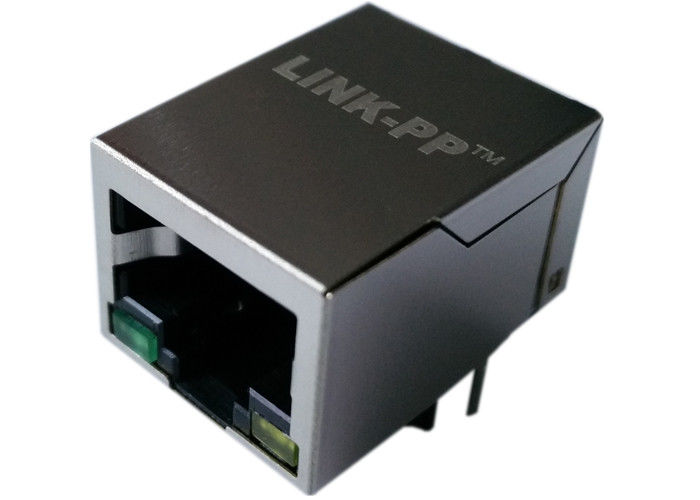

Model Number: LPJ0011HENL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specifications: |
LPJ0011HENL |
Part No: |
LPJ0011HENL |
Mounting: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 Female |
Filter: |
Inside With |
Samples: |
Available |
Specifications: |
LPJ0011HENL |
Part No: |
LPJ0011HENL |
Mounting: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 Female |
Filter: |
Inside With |
Samples: |
Available |
| NOTES: | |
|
| 1.Designed to support application,such as SOHO(ADSL | ||
| modems),LAN-on-Motherboard(LOM),hub and Switches. | ||
| 2.Meets IEEE 802.3 specification | ||
| 3.Connector Materials: | ||
| Housing: Thermoplastic PBT+30%G.F UL94V-0 | ||
| Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm | ||
| Pins: Brass C2680R-H Thickness=0.35mm | ||
| Shield: SUS 201-1/2H Thickness=0.2mm | ||
| Contact plating: Gold 6 micro-inches min.In contact area. | ||
| 4.Wave solder tip temperature: 265℃ Max, 5 Sec Max | ||
| 5.UL Certification: File Number E484635 | ||
