Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LU1S041F-43 LF （LPJ0011BBNL）
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Product Name: |
RJ45 Connector With Magnetics And LEDs |
Number Of Ports: |
1 Port |
Mounting: |
Side Entry (Right Angle) |
Jack Gender: |
RJ45 Female |
Magnetics: |
Integrated 10/100Mbps |
Termination Style: |
Through Hole |
Product Name: |
RJ45 Connector With Magnetics And LEDs |
Number Of Ports: |
1 Port |
Mounting: |
Side Entry (Right Angle) |
Jack Gender: |
RJ45 Female |
Magnetics: |
Integrated 10/100Mbps |
Termination Style: |
Through Hole |

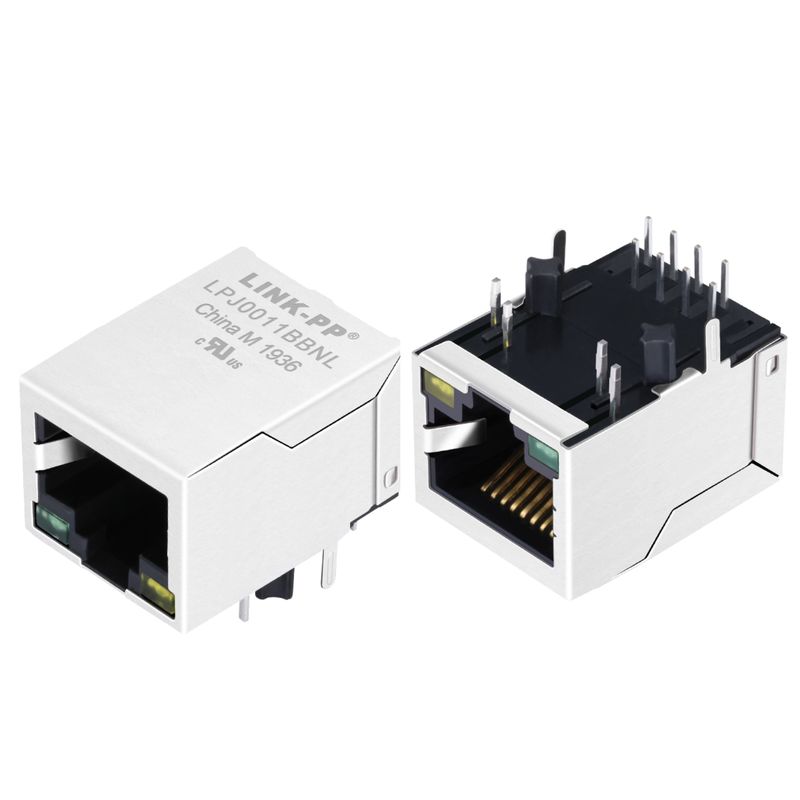

Single Port RJ45 Connector Module with Integrated 10/100 Base-TX Magnetics and LEDs
Design for 10/100 BASE transmission over UTP-5 cable
Compatible to Bothhand LU1S041F-43 LF Integrated RJ45 Connector
RJ45 connector integrated with transformer/impedance resistor/high voltage capacitor
Size same as RJ45 connector to save PCB board space
It reduced EMI radiation to improve EMI performance
1X1 RJ45 Magjack with 10/100 Base-TX integrated magnetics
Complies with FCC and IEEE standards
Comply with RoHS requirements part No Cd, No Hg, No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +85℃.
| Part Number | LU1S041F-43 LF/ LPJ0011BBNL |
| Turns Ratio (±5%) |
TX---1CT : 1CT RX---1CT : 1CT |
| OCL @ 100KHz/0.1V with 8mA DC Bias | 350uH Min |
| Cross talk |
0.3-30MHz: -40dB Min 30-60MHz: -35dB Min 60-100MHz: -30dB Min |
| HI-POT | 1500Vrms |
| Insertion Loss |
0.3-100MHz:-1.15dB Max |
| Return Loss |
30MHz: -16dB Min 40MHz: -14dB Min 50MHz: -13.5dB Min 60MHz: -13dB Min 80MHz: -10dB Min |
| CMR (dB Min) TX/RX |
1-30MHz: -30dB Min 30-60MHz: -25dB Min 60-125MHz: -20dB Min |
Application of RJ45 Connector with LED:
Used for networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.
1. Plastic Material: Thermoplastic (UL 94V-0), Black Housing
2. Metal Shield: Brass, 20u" inches thick Nickel
3. Spring Wire: Phosphor bronze with selective gold plating
4. Solder Pin: 0.4x0.4mm, Phosphor bronze with solder Plated
5. Durability: 750 Mating cycles Min Integrated Connector Module
