6116353-4 / 6116353-1 RJ45 Modular Jack 1x2 Shield Panel Ground With LED

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 6116353-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

1 x 2 RJ45 Connector

,

6116353-4

,

6116353-1

Specification:
6116353 Series
Part No:
6116353-4 / 6116353-1
Port:
1 X 2
Operating Temperature Range:
-40 – 85 °C
Shielded:
Yes
Performance Category:
Cat 5
Specification:
6116353 Series
Part No:
6116353-4 / 6116353-1
Port:
1 X 2
Operating Temperature Range:
-40 – 85 °C
Shielded:
Yes
Performance Category:
Cat 5

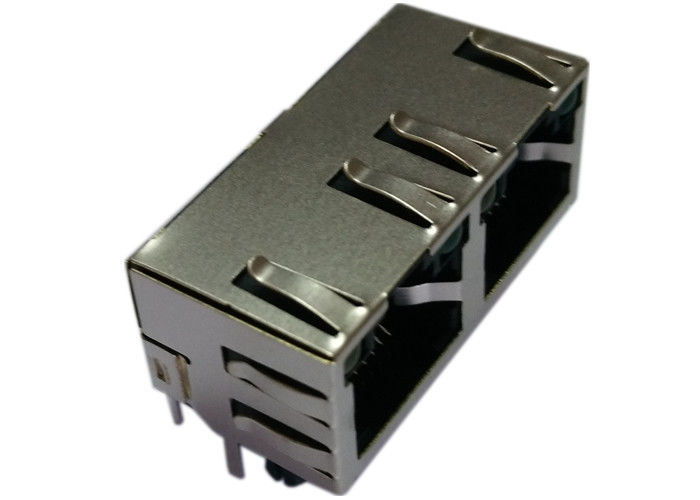

6116353-4 / 6116353-1 RJ45 Modular Jack 1x2 Shield Panel Ground With LED



6116353-4 / 6116353-11x2 Port RJ45 Connector with LEDs overview

Specifications:



Feature

Description

Series

TE Connectivity AMP Connectors

Part Number

6116353-1,6116353-4

Connector Type

Jack, 8p8c (RJ45, Ethernet)

Number of Ports

Multiple Ports, 1 x 2

Latch

Inverted - Latch Up

Mounting Type

Through Hole

Orientation

90° Angle (Right)

Termination

Solder

Shielding

Shielded, EMI Finger

Ratings

Cat5

LEDs

Yellow - Green

Housing Material

Thermoplastic or Nylon

Contact Material

Phosphor Bronze

Contact Finish

Gold

Operating Temperature

-40°C ~ 85°C







NOTES:


PCB RJ45 JACK Specification
1. Insulation Resistance: 500MΩMIN @ 500 VDC
2. Withstanding Voltage: AC1000V 50Hz or 60Hz 1min.
3. Durability: 600 Mating Circles MIN.
4. Gold Plating: (Gold Flash;1.5;3;6;15;30;50)U" Inch



ENVIRONMENTALl
1. Storage Temperature: -40℃ To +85℃
2. Operation Temperature: -40℃ To +85℃
3. Wave Soldering Temperature: 55℃~265℃(5~10Seconds)
4. RoHs Compliant.





6116353-1 1 x 2 RJ45 Connector Drawings



6116353-4 / 6116353-1 RJ45 Modular Jack 1x2 Shield Panel Ground With LED 0

6116353-4 / 6116353-1 RJ45 Modular Jack 1x2 Shield Panel Ground With LED 1

6116353-4 / 6116353-1 RJ45 Modular Jack 1x2 Shield Panel Ground With LED 2

6116353-4 / 6116353-1 RJ45 Modular Jack 1x2 Shield Panel Ground With LED 3
