Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE, ISO9001:2008,REACH
Model Number: HY931147C
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray Package: Carton size/32*30*31cm, G.W.-carton/8.5kg, Qty-carton/1200pcs, SPQ/50pcs
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Specifications: |
HY931147C |
Applications: |
POE 10/100 |
Orientation: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 |
Shielded / Filter: |
Yes |
Gender: |
Female |
New Model: |
LPJ0049GDNL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Specifications: |
HY931147C |
Applications: |
POE 10/100 |
Orientation: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 |
Shielded / Filter: |
Yes |
Gender: |
Female |
New Model: |
LPJ0049GDNL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
1.21.3mm length RJ45 Magjack Power Over Ethernet.
2.1X1 Tab-down
3.Through hole RJ45 modular jack
4.10/100 Base-T
Description:

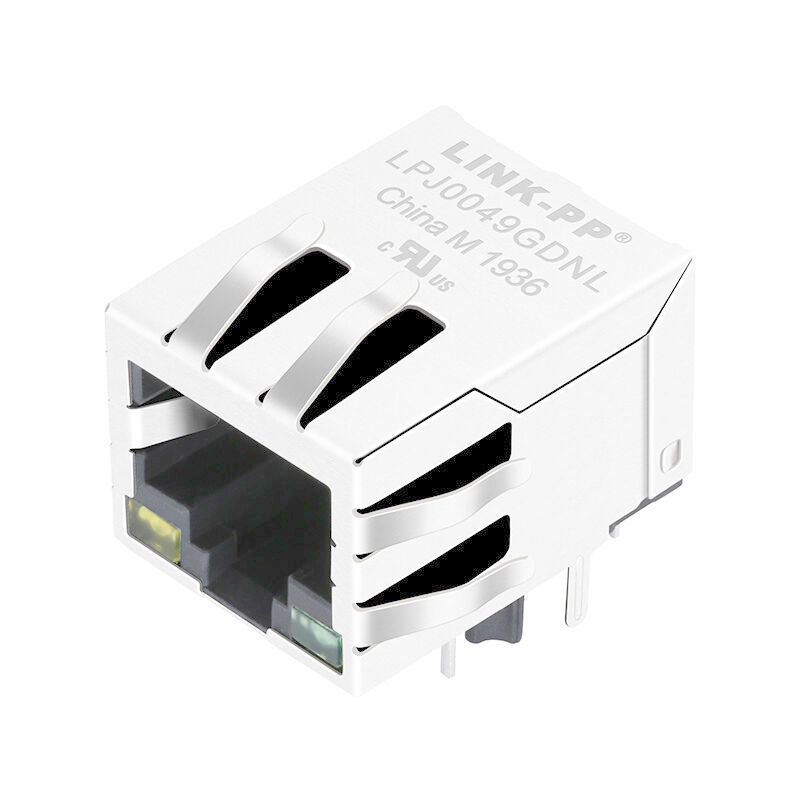

1X1 RJ45 Magjack with leds, meeting IEEE 802.3af
| Single Port RJ45 Ethernet Connectors with 10/100 Base-T Integrated Magnetics & PoE,Yellow/Green LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ0049GDNL |
| Hanrun Part Number | HY931147C |
| Application-Lan | ETHERNET(PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | With DIODES |
| LED Option | YELLOW/GREEN |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Tray Package: Carton size/32*30*31cm, G.W.-carton/8.5kg, Qty-carton/1200pcs, SPQ/50pcs
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
