Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJ0011BBNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton, Carton size/32*30*31cm, G.W./carton/8.5kg
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Compatible Brands: |
Pulse |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
NONE |
LED Option: |
With |
EMl Tabs: |
Without |
Mounting Type: |
THT |
Operating Temperature Range: |
0°C To +70 °C |
Solder Type: |
WAVE |
Compatible Brands: |
Pulse |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
NONE |
LED Option: |
With |
EMl Tabs: |
Without |
Mounting Type: |
THT |
Operating Temperature Range: |
0°C To +70 °C |
Solder Type: |
WAVE |

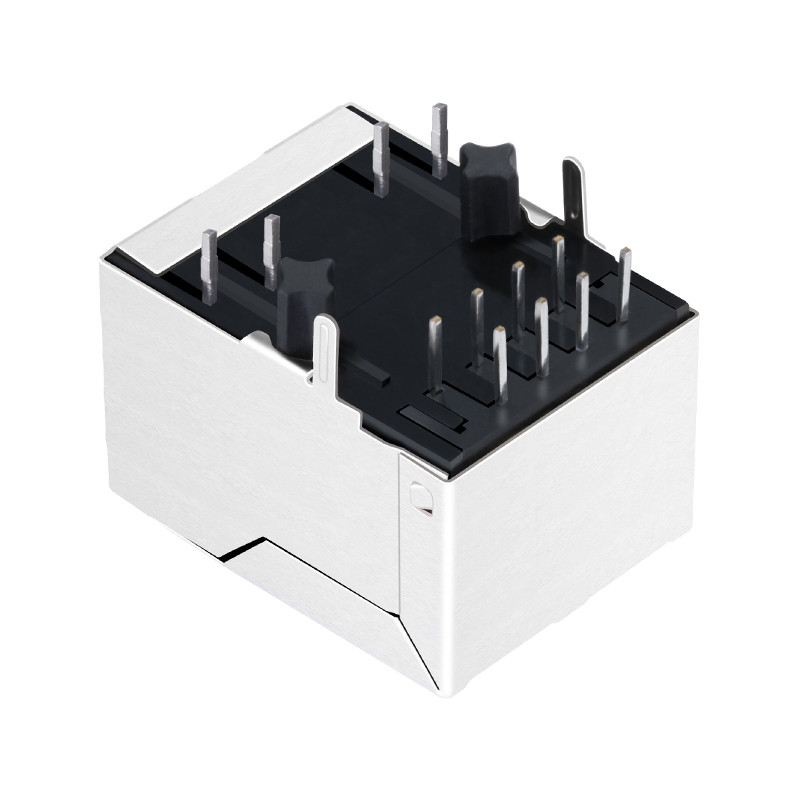

1. Type: Single Port RJ45 8p8c modular jack LPJ0011BBNL
2. Data Rate: 10/100 Base-TX
3. EMI Fingers: Without
4. Mounting Type: Through Hole
5. Shielding: Shielded
6. Termination: Solder
7. RoHS Compliant: YES
9. LEDs: Left Green Right Yellow
10. Suitable for embedded PCs, hubs, routers, switches and LAN applications.
11. Contact Material Phosphor Bronze
12. Contact Finish: Gold
13. Operating Temperature: 0°C ~ 70°C
14. Contact Finish Thickness:15.0µin (0.38µm)
15. Shield Material: Brass
16. Housing Material: Thermoplastic
LINK-PP's LPJ0011BBNL RJ45 Connector plays a pivotal role in BeagleBone Black ethernet connection. It met all requirements with its integrated 1x1 Tab-Down design supporting reliable 100BASE-TX data rates. Key features like green/yellow LED status indicators and industry-standard pinout ensured a user-friendly interface. Based on the recognition of the professionalism of LINK-PP in the early cooperation, the high-performance LPJ0011BBNL became the best choice for the BeagleBone Black ethernet connector. The seamless integration of the LINK-PP RJ45 jack provided users with reliable wired Ethernet access immediately upon opening the BeagleBone Black. Features like the status LEDs Enhanced the user experience. The Robust and durable design of the LPJ0011BBNL, such as its wide temperature range from 0℃ to 70℃ and IEEE802.3 standard compliance, ensured long-lasting connectivity even in challenging environments.
Electrical Parameter @25℃:
1. Turn Ratio: TX=1CT:1CT RX=1CT:1CT
2. Inductance OCL: 350uH Min @100KHz, 0.1V, 8mA DC BIAS
3. Insertion Loss: -1.0dB MAX @1.0-100MHz
4. Return Loss:
-18dB MIN @ 1-30WHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5. Crosstalk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6. Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7. Hipot: 1500Vrms
8. Operating Temperature Range: 0℃ TO 70℃
