Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008， REACH
Model Number: 6610005-4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month

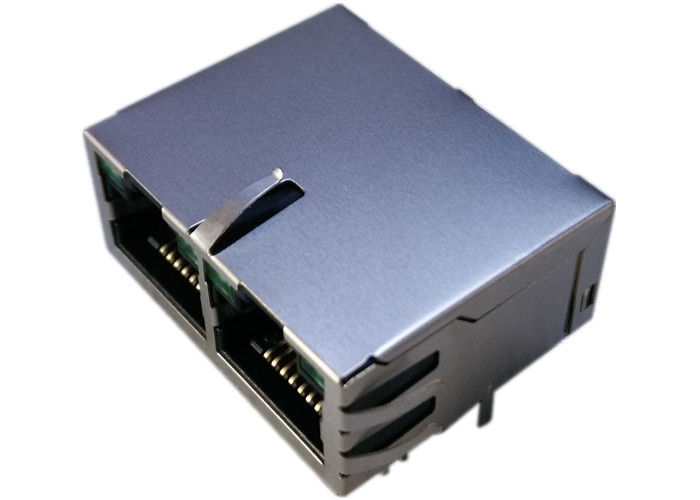

Part No: |
LPJG28831A94NL |
Specification: |
6610005-4 |
Ethernet: |
2x 10/100/1000M |
Indicator: |
Resistor LED |
Gender: |
Female,Receptacle |
Samples: |
Available |
Part No: |
LPJG28831A94NL |
Specification: |
6610005-4 |
Ethernet: |
2x 10/100/1000M |
Indicator: |
Resistor LED |
Gender: |
Female,Receptacle |
Samples: |
Available |
| Electrical Specifications @25℃ 1.OCL(100KHz,0.1V,8mA DC BIAS): 350uH MIN 2.Insertion Loss: 0.5～100MHz:-1.1dB MAX 3.Return Loss: 0.5～40MHz:-18dB MIN 40.1-100MHz:-[12-20LOG(f/80)]dB MIN. 4.Crosstalk: 0.5～40MHz:-35dB MIN 40.1-100MHz:-[33-20LOG(f/50)]dB MIN. 5.Common Mode Rejection Ratio: 0.5～100MHz:-30dB MIN 6.Hipot Test: 1500Vrms MIN 7.Operating Temperature: 0℃ TO +70℃. |
|
|
|
