| Technical: | J0011D21E | Specifications: | LPJ0011ACNL |
|---|---|---|---|
| Speed: | 10/100Base Auto | Samples: | Offer 3-5 Free |
| High Light: | rj-45 ethernet jack,modular jacks rj45 |
||
|
Speed:
|
10/100BASE-T
|
|
Number of Ports:
|
1x1 PORT
|
|
Application - LAN:
|
ETHERNET (WITHOUT PoE)
|
|
Latch:
|
UP
|
|
Pin Type:
|
THT SOLDER
|
|
Temperature:
|
0 TO 70
|
|
Listing Description:
|
|
|
|
1) manufacture RJ45 Magnetic Jack for 16years Experience
|
|
|
1)ISO9001 SGS UL CE REACH Certification
|
|
|
3)Main customer:TI GE SONY Samsung IBM CANON
|
|
|
4)PULSE OEM for 9years
|
|
Detailed Description:
|
|
|

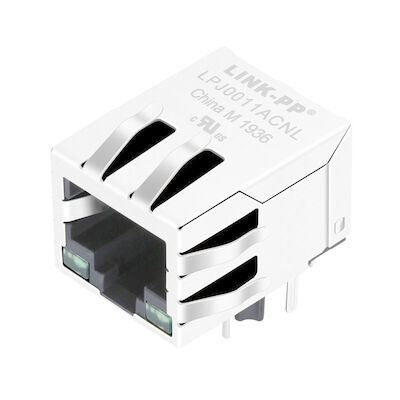

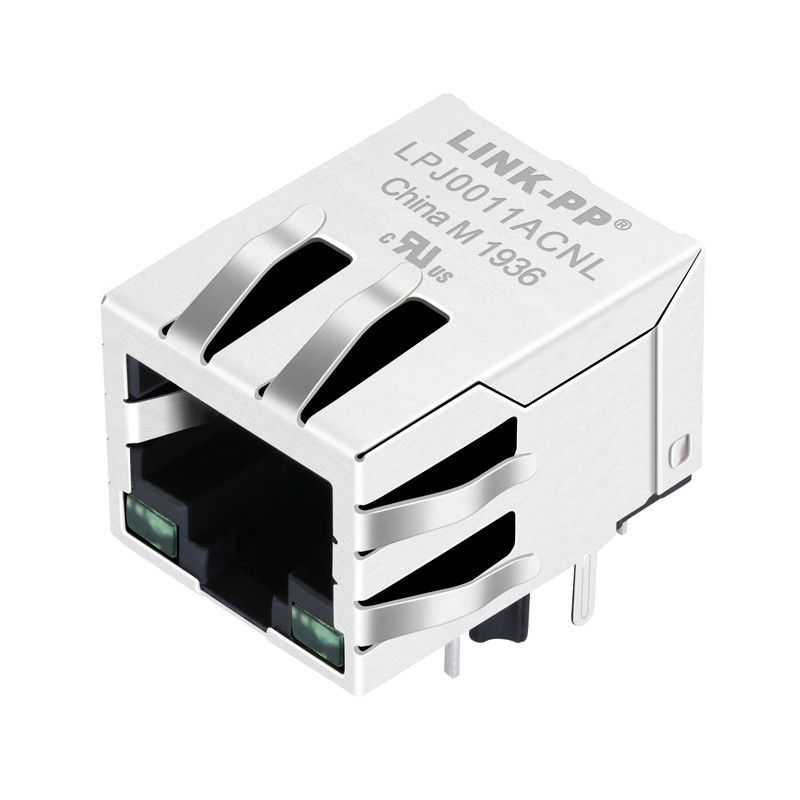

10 / 100 Base , RJ45 Modular Jack ,Right Angle Stacked USB Connector J0011D21E
|
|
|
1.Characteristics:
|
1)RJ45 Connector with integrated transformer/common mode choke
|
|
|
2)Available in SMD, THT and THT with USB
|
|
|
3)350µH min. OCL with 8mA bias
|
|
|
4)Complies with IEEE 802.3
|
|
|
5)Extended temperature range -40°C to +85°C available
|
|
|
|
|
|
|
|
2. Operation/Application:
|
1)10 / 100 / 1000 Base-T
|
|
|
2)xDSL Modems
|
|
|
3)Embedded PC
|
|
|
4)LAN Applications
|
|
|
5)Hub, Router, Switches
|
|
3. Mechanical Attachment:
|
|
|
1) Jack Configuration
|
|
|
4. Electrical Characteristics:
|
|
|
1) Shielded
|
Yes
|
|
5. Termination Related Features:
|
|
|
1) EMI Finger
|
Yes
|
|
2) Termination Method
|
Solder
|
|
6. Body Related Features:
|
|
|
1) Port Configuration
|
Single
|
|
2) EMI Fingers -Top and Sides
|
With/Without
|
|
3) Latch Orientation
|
Standard - Latch Down
|
|
4) PCB Tail Length
|
3.50±0.50mm
|
|
7. Contact Related Features:
|
|
|
1) Preloaded
|
Yes
|
|
2) Contact Termination Type
|
Through Hole
|
|
8. Housing Related Features:
|
|
|
1) Connector Style
|
Jack
|
|
9. Industry Standards:
|
|
|
1) RoHS/ELV Compliance
|
RoHS compliant, ELV compliant
|
|
2) Lead Free Solder Processes
|
Wave solder capable to 265°C
|
|
3) RoHS/ELV Compliance History
|
Always was RoHS compliant
|
|
10. Identification Marking:
|
|
|
1) Left LED Color
|
Green or Yellow
|
|
2) Right LED Color
|
Green or Yellow
|
|
11. Conditions for Usage:
|
|
|
1) Applies To
|
Printed Circuit Board
|
|
2) Environmental Conditions
|
Office / Premises
|
|
3) Operating Temperature (°C )
|
0 - 70/-40 - +85
|
|
12. Configuration Related Features
|
|
|
1) Magnetic Circuit
|
3D15
|
|
2) Status Indicator
|
Led
|
|
3) Decoupling Capacitor
|
With/Without
|
|
4) Rear PCB Ground Tab
|
With/Without
|
|
5) Signal Lead Quantity
|
8
|
