Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, CE, ISO9001:2008,REACH163
Model Number: 7498010210A
Payment & Shipping Terms
Minimum Order Quantity: 770pcs
Price: Discount & Supportive
Packaging Details: 110 pcs/reel,7reel/carton,35*35*35/10KGS (770 pcs)/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
P/N: |
7498010210A |
100% Cross: |
LPJ8028ABNL |
Data Rate: |
10/100Mbps |
Ports: |
1 |
Indicator: |
Green-Yellow LED |
Mount: |
SMT |
Shield Tabs: |
YES |
PoE: |
Non-PoE |
P/N: |
7498010210A |
100% Cross: |
LPJ8028ABNL |
Data Rate: |
10/100Mbps |
Ports: |
1 |
Indicator: |
Green-Yellow LED |
Mount: |
SMT |
Shield Tabs: |
YES |
PoE: |
Non-PoE |
| Parameter | Specification |
| Product Series | WE-RJ45 |
| Part Number | 7498010210A |
| Mounting Type | SMT (Surface Mount Technology) |
| Port Configuration | 1 Port (1x1 Jack) |
| Tab Position | Tab Up |
| Shield Tabs | Yes (Enhanced EMI Grounding) |
| LED Colors | Green / Yellow |
| Operating Temperature | -40 °C to +85 °C |
| Electrical Property | Test Conditions / Value |
| Data Rate Compatibility | 10/100BASE-T / 100Base-TX |
| Turns Ratio (± 2%) | TX = 1CT:1CT | RX = 1CT:1CT (100kHz / 100mV) |
| Inductance (OCL) | 350 µH Min @ 100KHz, 100mV, 8mA DC bias current |
| Insertion Loss | -1.0 dB Max (1 – 100 MHz) |
| Return Loss (100Ω ± 15Ω) | -20 dB Min (1–10 MHz) | -16 dB Min (30 MHz) | -12 dB Min (60–80 MHz) |
| Crosstalk | -40 dB Min (1–10 MHz) | -35 dB Min (30–60 MHz) | -30 dB Min (60–100 MHz) |
| Common Mode Rejection | -30 dB Min (1–50 MHz) | -20 dB Min (50–130 MHz) |
| Hipot Isolation (Dielectric) | 2250 VDC for 1 minute |
| PHY Chip Drive Mode | Supports both Current Mode & Voltage Mode PHYs |
| PoE Compatibility | Non-PoE |
| Standards Compliance | Fully compliant with IEEE 802.3u |
According to the datasheet, this connector module uses SMT mounting, includes a shielded construction, and features LED indication for link/status visibility. The document also shows 1,000 pF / 2 kV isolation elements in the schematic and identifies the product as part of Würth Elektronik’s WE-RJ45 LAN 10/100BaseT series.

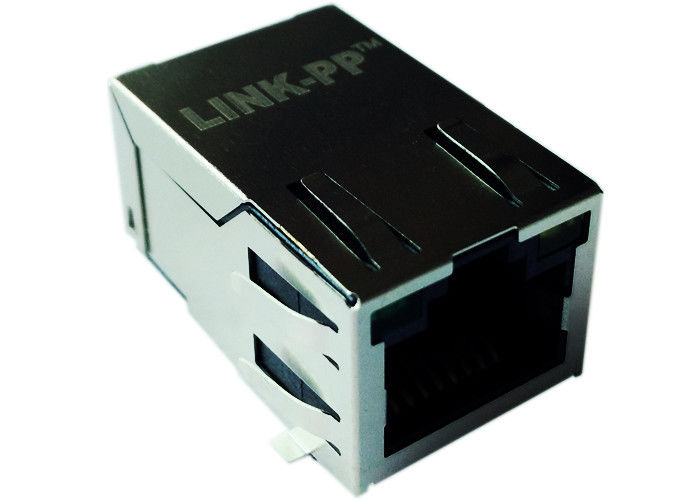

Source the original 7498010210A surface mount (SMT) RJ45 connector with integrated magnetics. Features 10/100BASE-T speed, Tab-Up orientation, Shield Tabs, and industrial temp range (-40°C to +85°C). IEEE 802.3u & Auto MDIX compliant. Request a quote or technical datasheet today.
Yes. The datasheet states that it is compliant with IEEE 802.3u for 10/100Base-TX applications.
No. This part is specified as non-PoE.
The operating temperature range is -40°C to +85°C.
Yes. The product is listed with green-yellow LEDs.
Yes. The datasheet explicitly states Auto MDIX capable.
